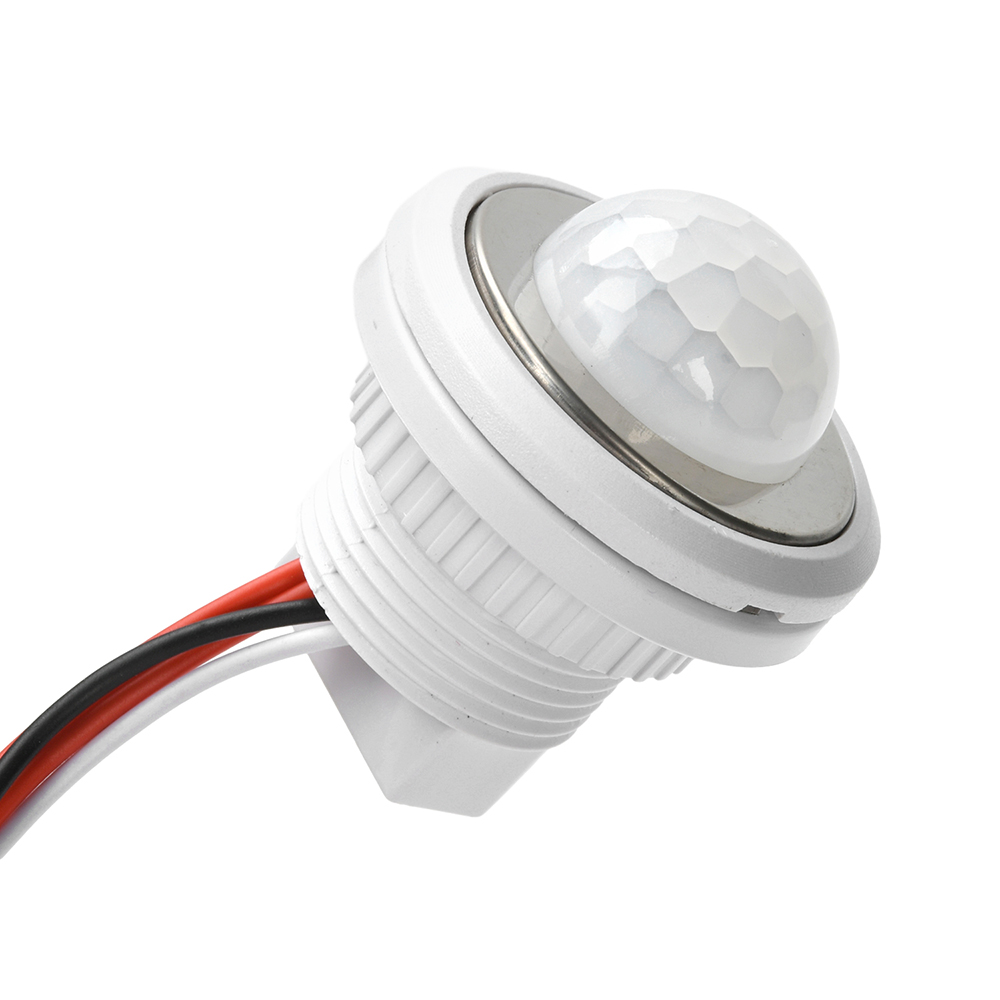

Features:

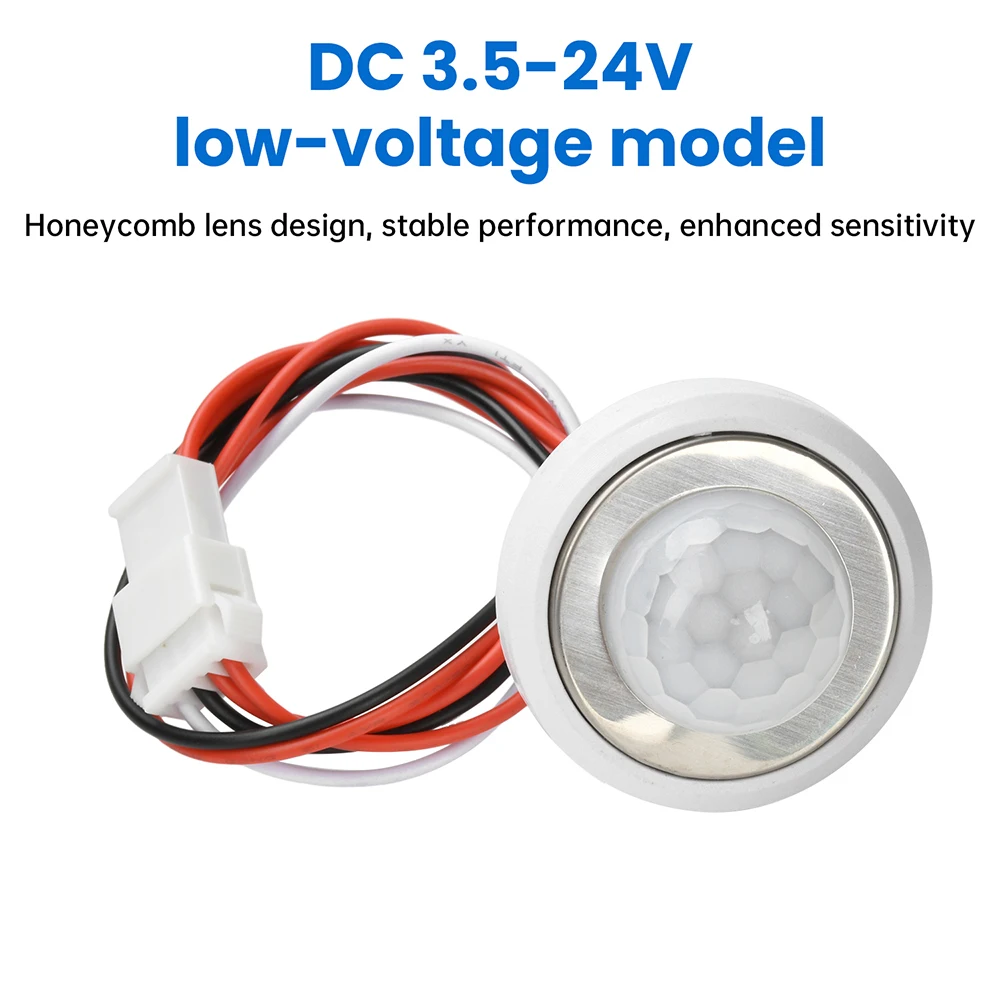

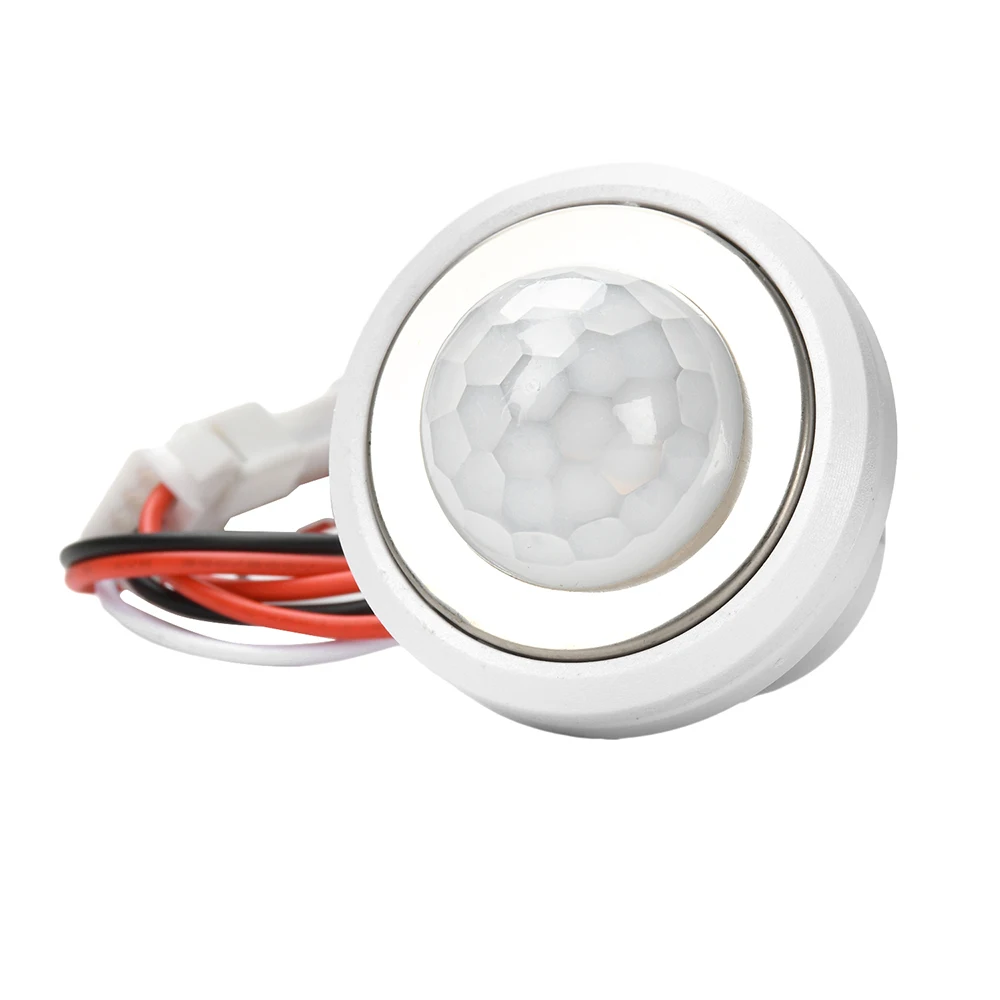

1. Honeycomb lens design ensures stable performance and enhanced sensitivity

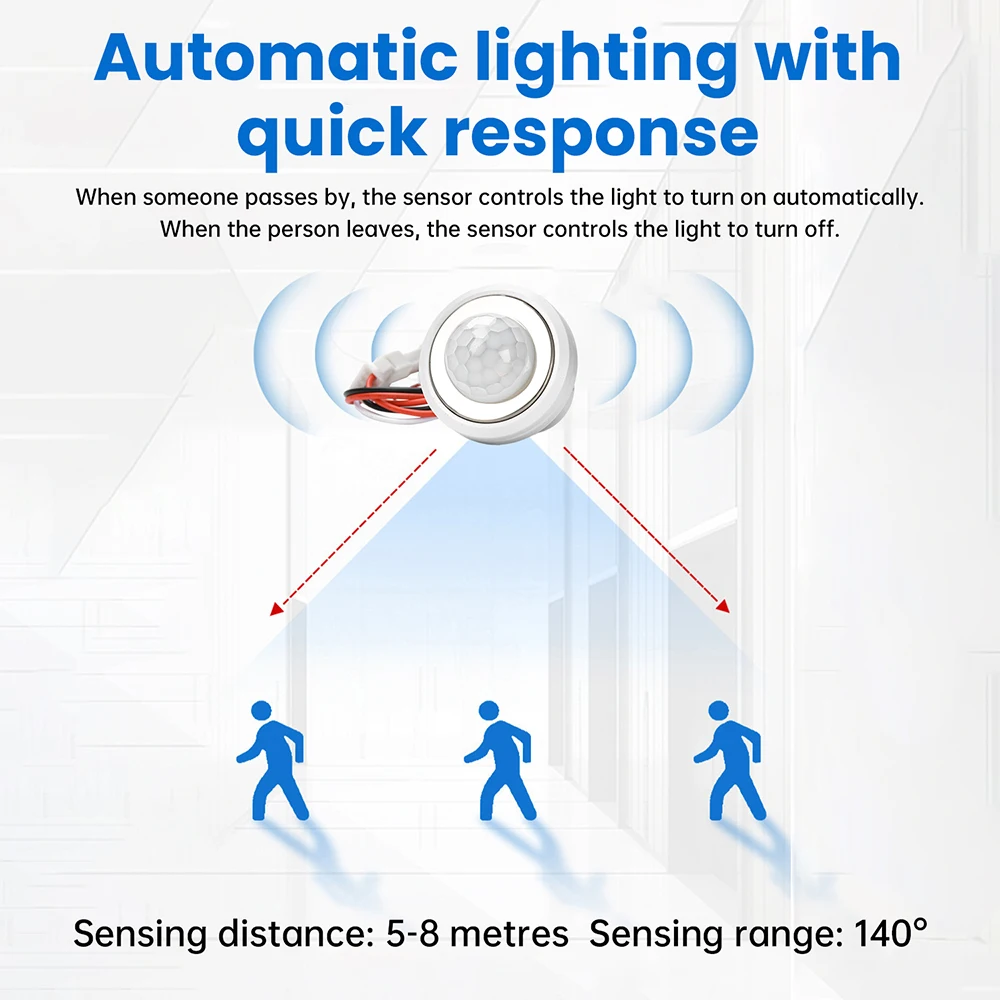

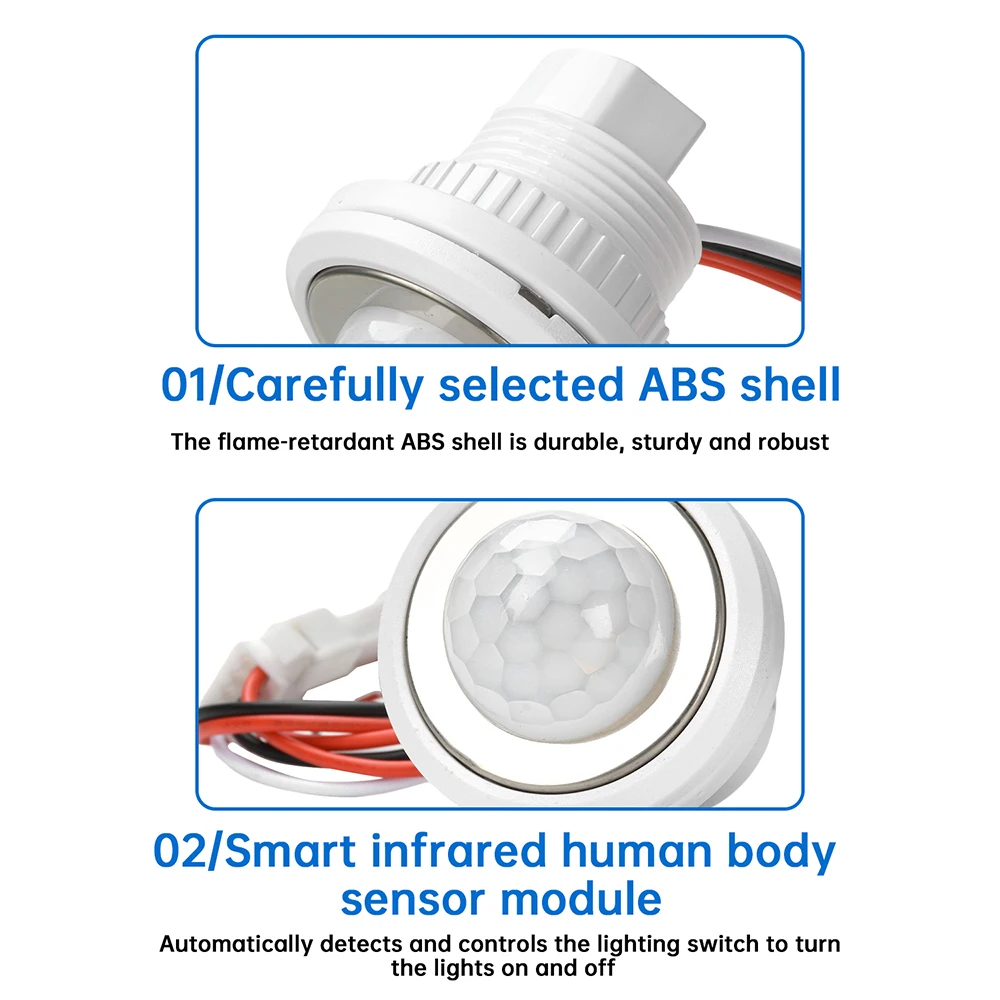

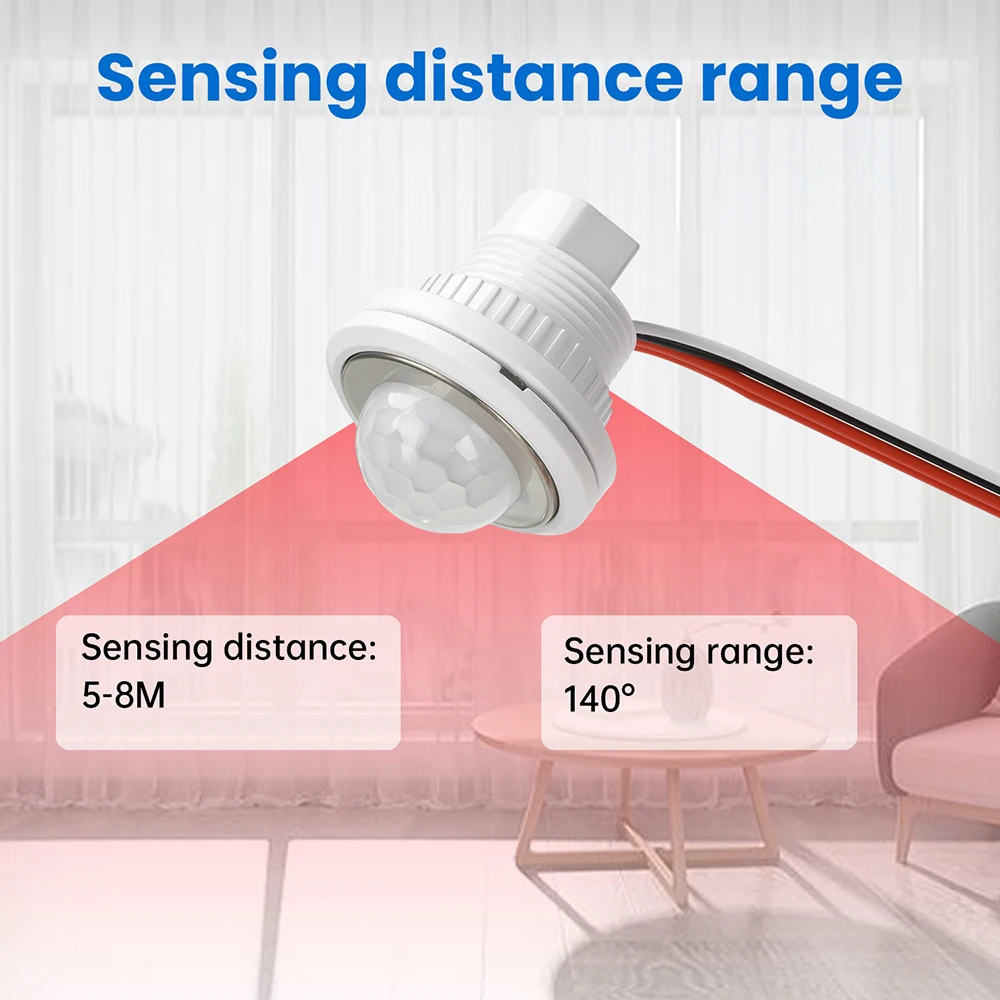

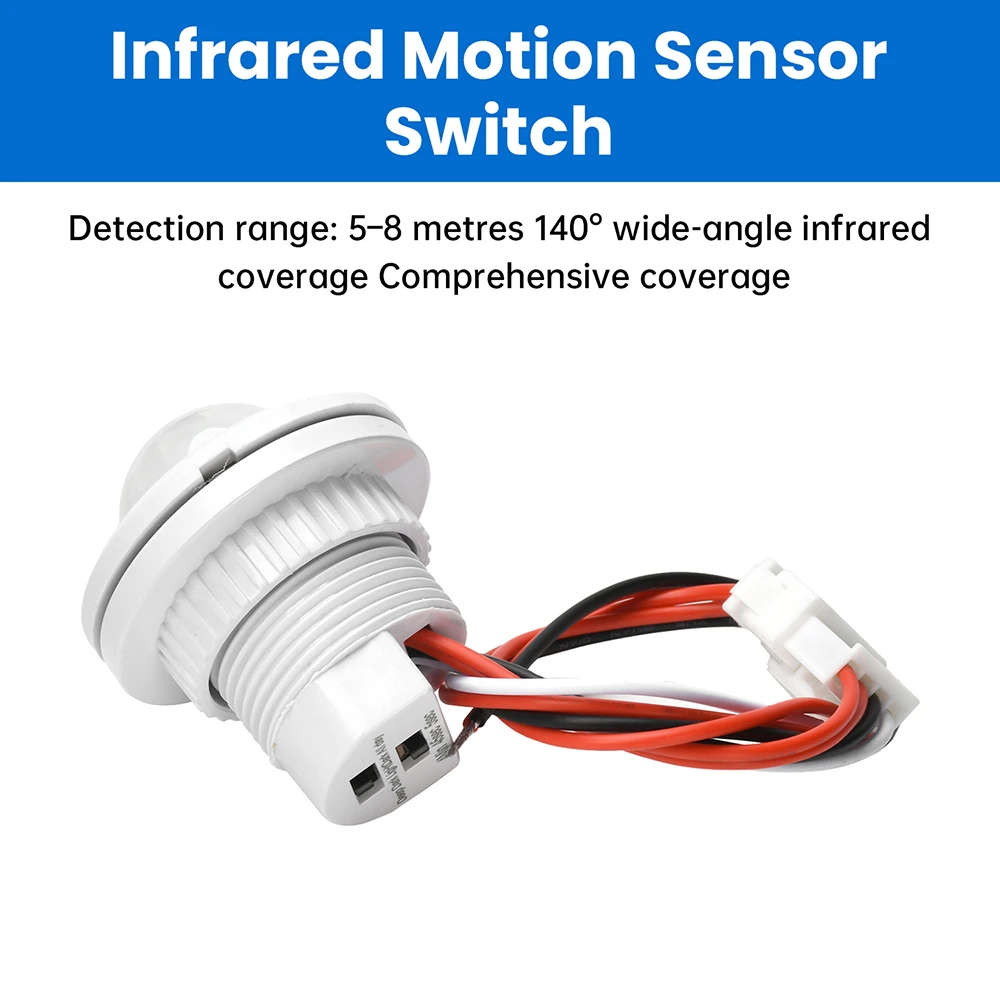

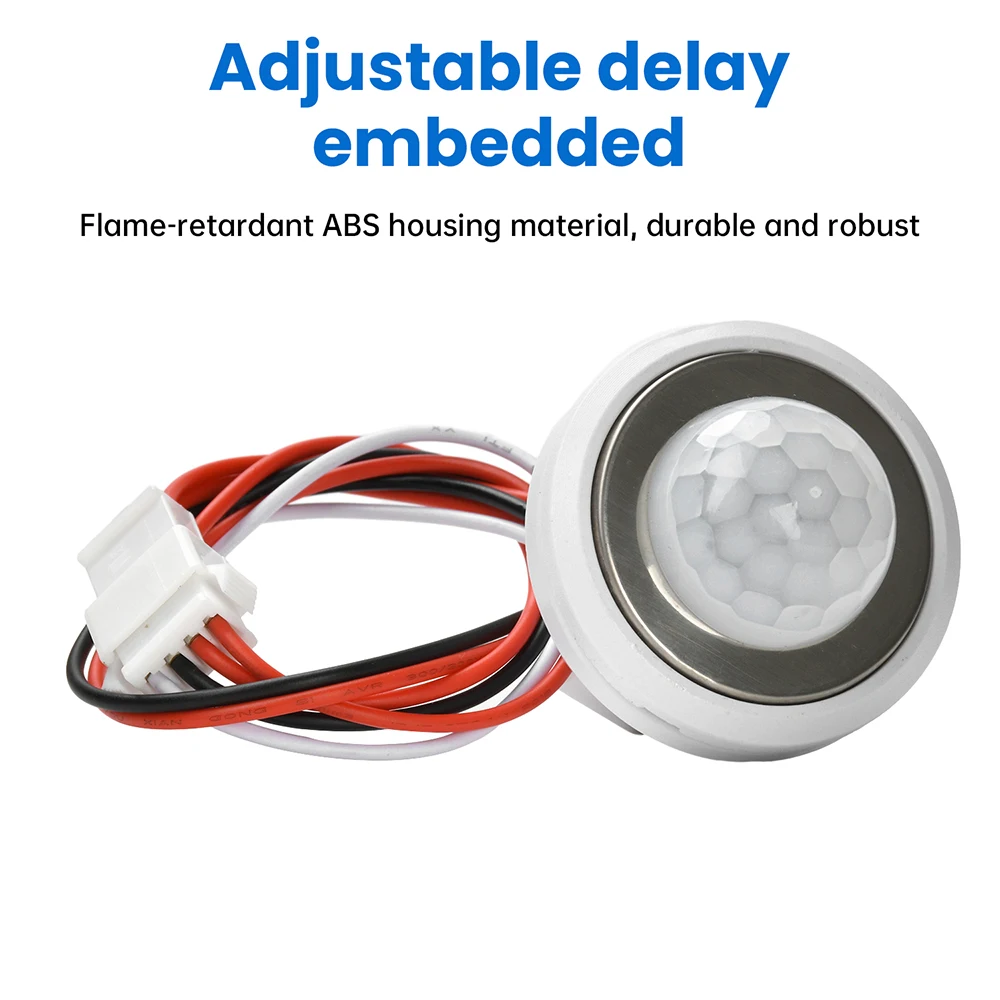

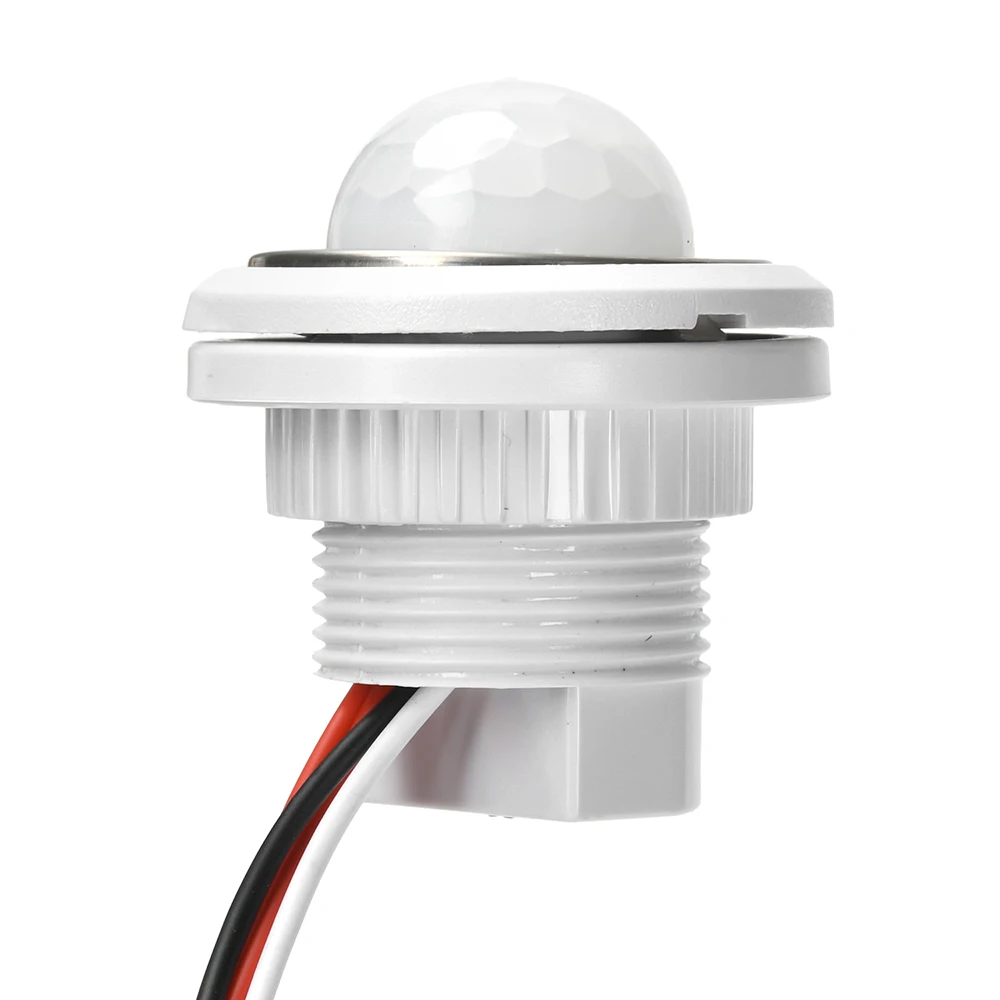

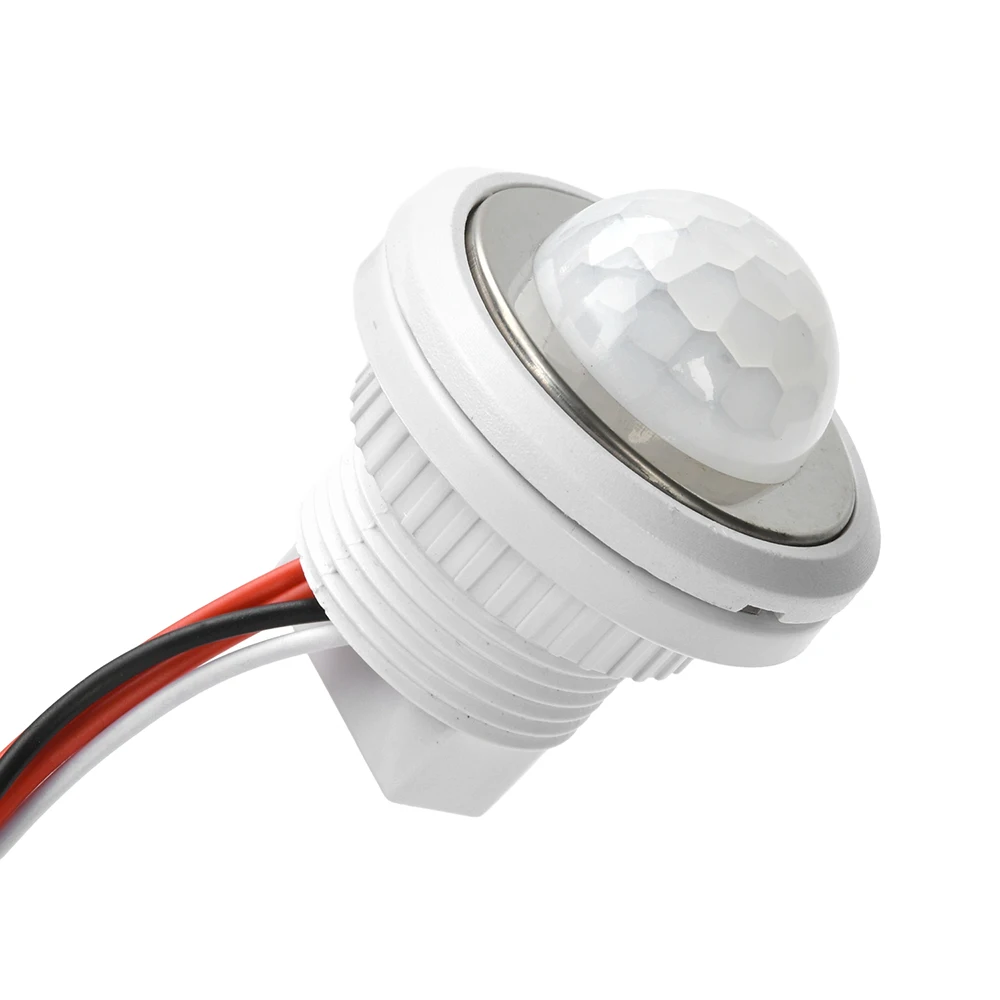

2. Flame-retardant ABS housing delivers durable, robust construction

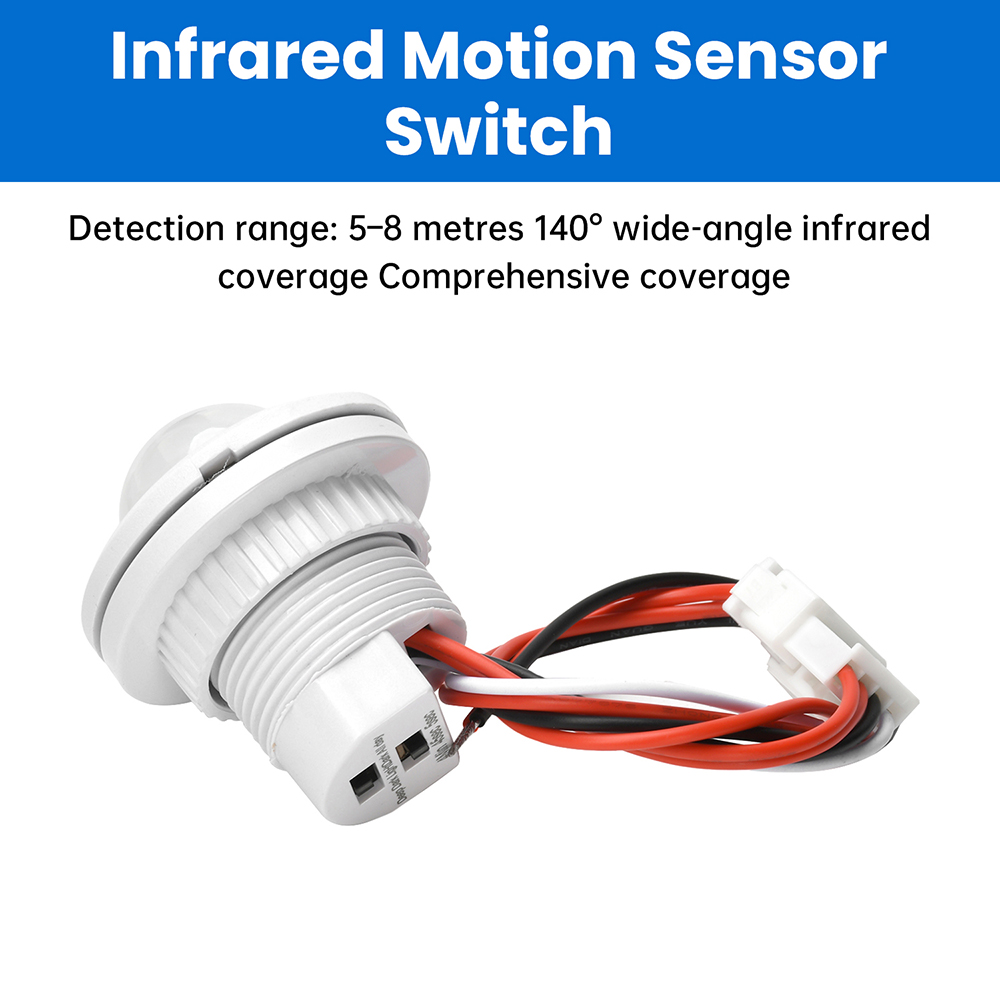

3. 5-8 meter detection range with 140° wide-angle infrared coverage

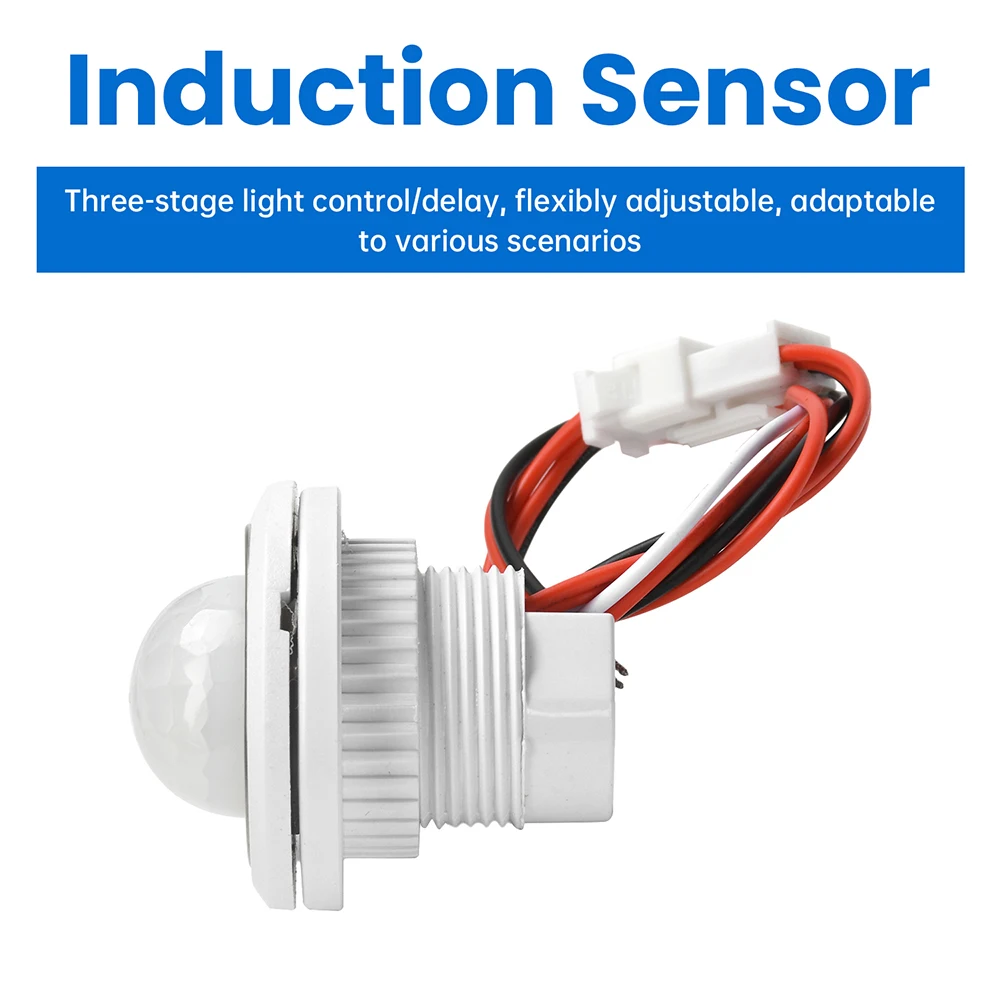

4. Three-level light control/delay settings for flexible scene adaptation

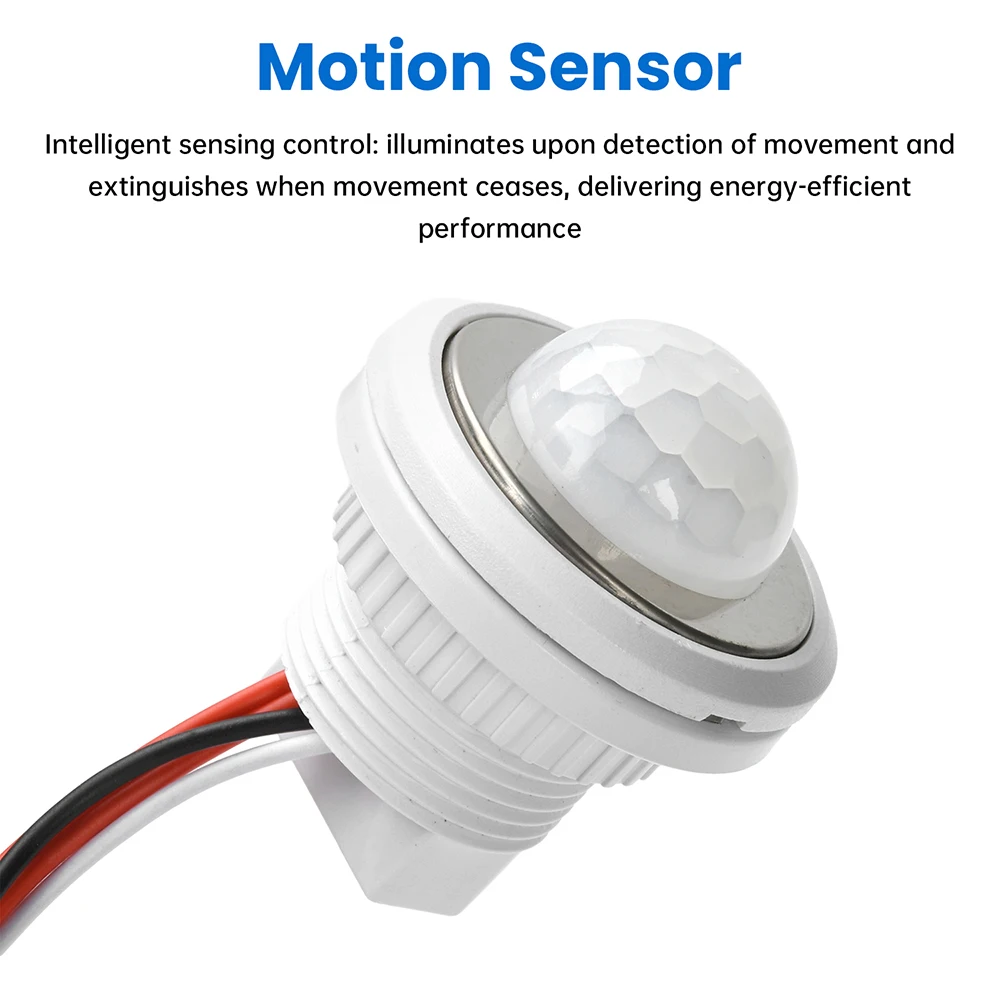

5. Intelligent sensing control: illuminates upon presence and turns off when absent for energy efficiency

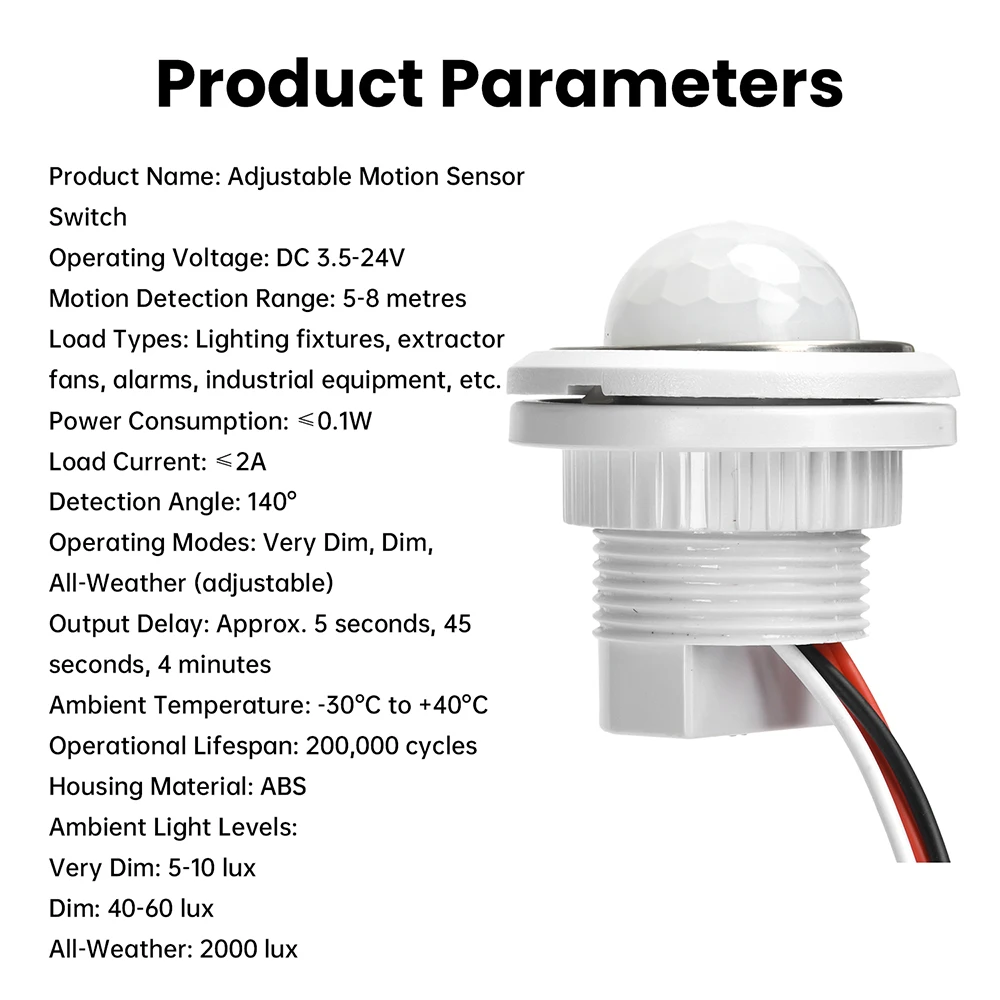

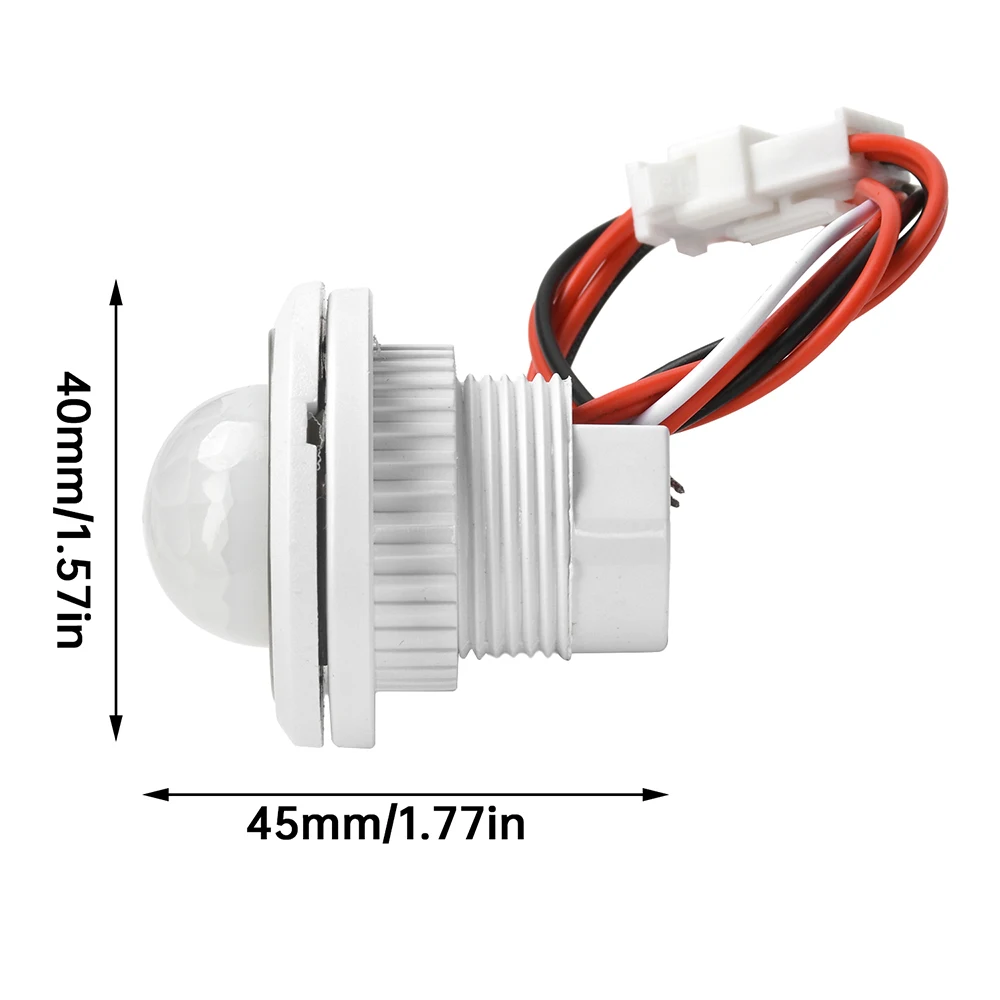

Parameter:
Product Name: Adjustable Motion Sensor Switch
Operating Voltage: DC 3.5-24V
Motion Detection Range: 5-8 meters
Load Types: Lighting fixtures, exhaust fans, alarms, industrial equipment, etc.
Power Consumption: ≤0.1W
Load Current: ≤2A
Detection Angle: 140°

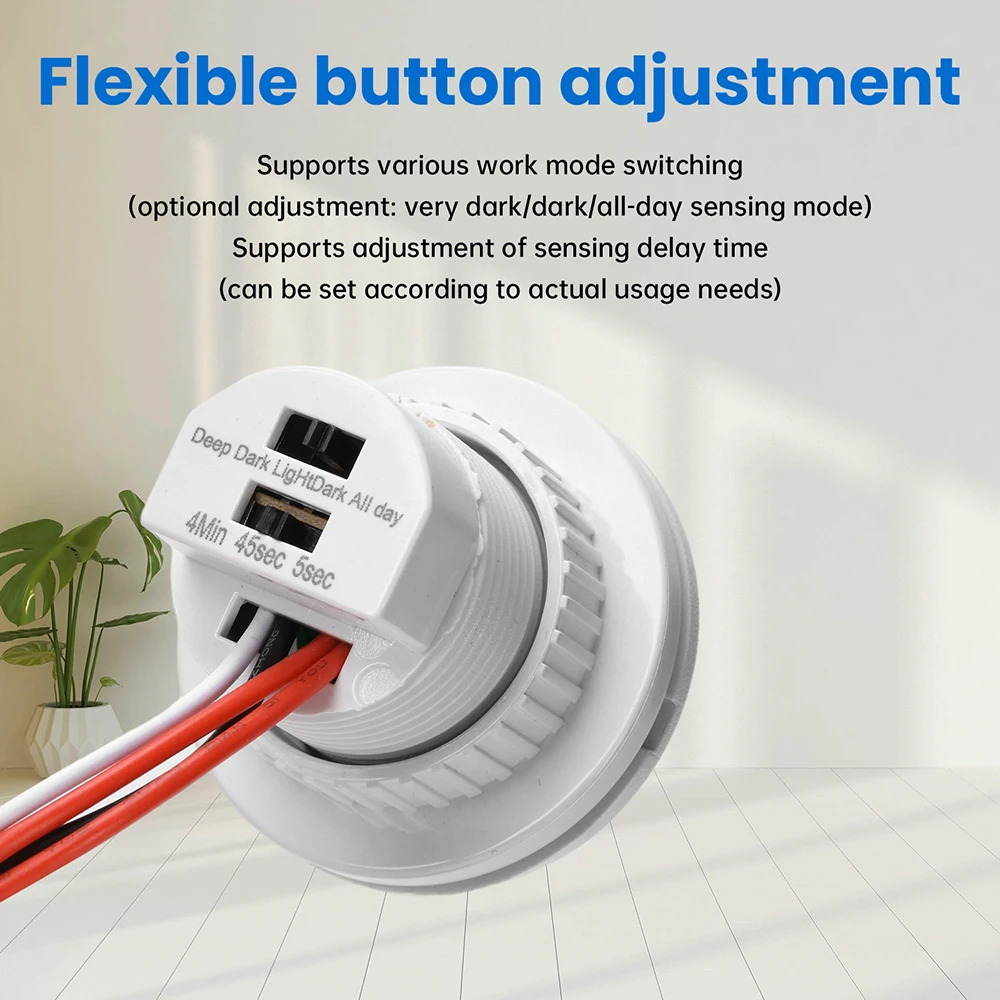

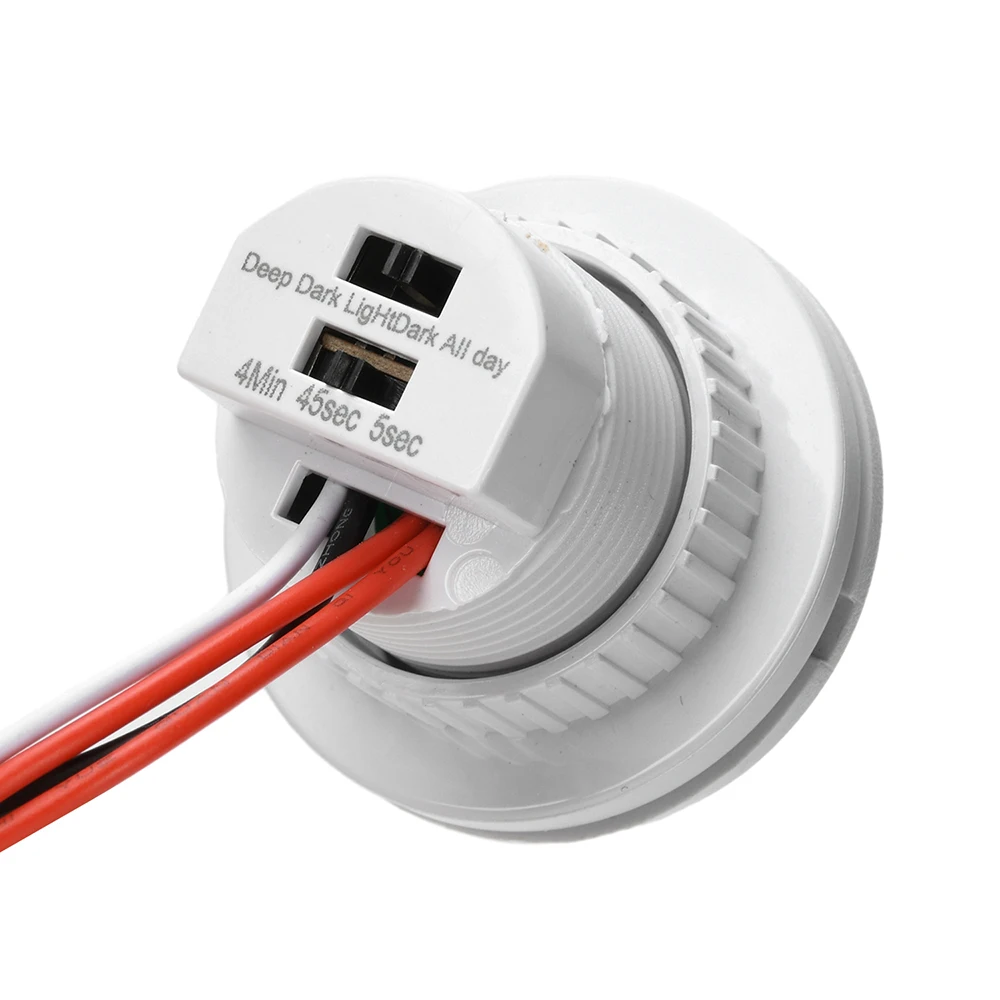

Operating Modes: Very Dim, Dim, All-Day Mode (adjustable)
Output Delay: Approx. 5 sec, 45 sec, 4 min
Ambient Temperature: -30°C to +40°C
Service Life: 200,000 cycles
Housing Material: ABS
Ambient Brightness: Very Dim 5-10 LUX, Dim 40-60 LUX, All-Day Mode 2000 LUX
Description:
The smart infrared sensor is an automatic control product based on infrared technology, featuring high sensitivity and reliability. Operating on AC voltage, it is widely used in various automatic sensing electrical equipment. This switch is particularly suitable for various sensor lighting fixtures, cabinet sensor lights, sensor alarms, smart industrial control devices, etc.
Function：

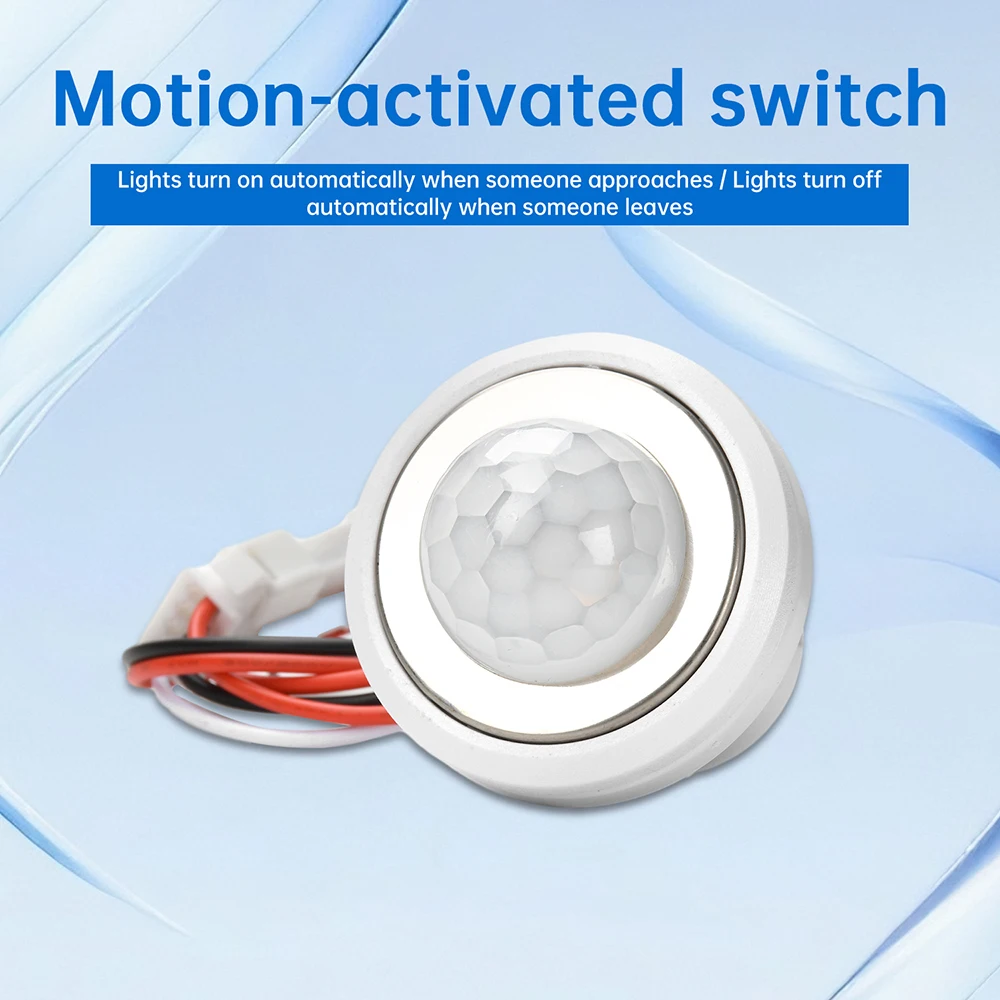

1. Automatic sensing: Lights turn on when someone enters the sensor’s detection zone and turn off automatically after a delay when the person leaves.
2. During illumination, each valid human movement extends the sensor’s delay period by one interval.
Usage Notes:
1. Never wire while energized. Never short-circuit the load. Power on only after installation is complete.
2. Strictly follow the wiring diagram. Incorrect connections will permanently damage the switch and cause power supply circuit failures.
3. Never exceed the rated power capacity, as this will permanently burn out the switch.
4. Do not install the switch in areas exposed to direct strong light or cold airflow. Avoid locations with high-power RF radiation (e.g., near radios, walkie-talkies, or antennas).

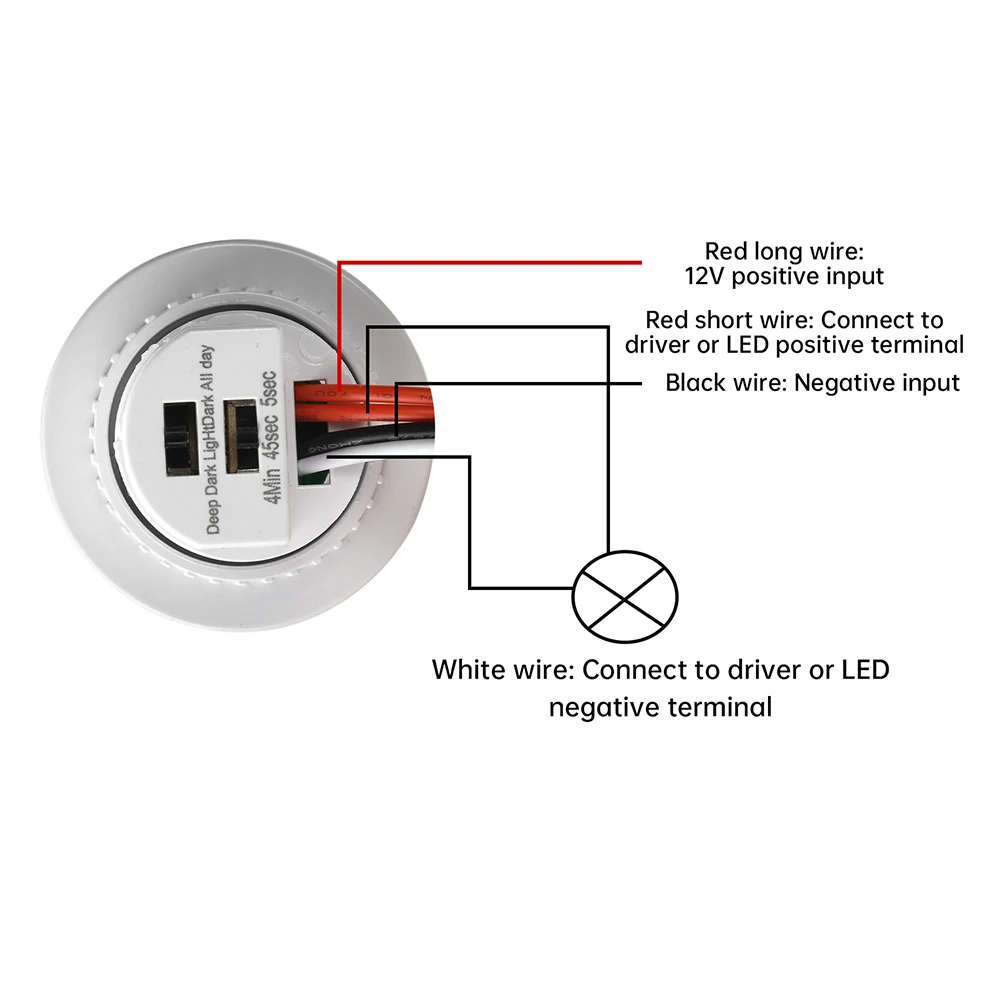

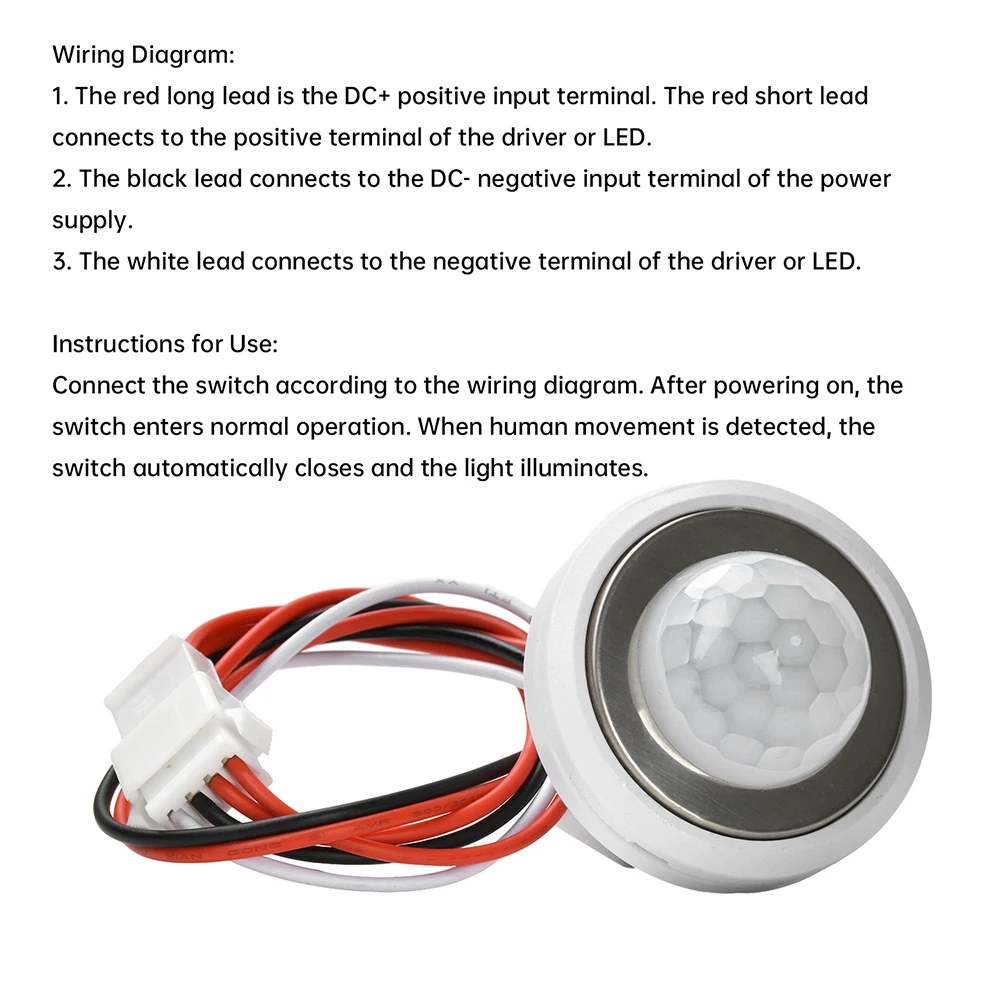

Wiring Diagram:
1. Red long wire: DC+ positive input terminal.
2. Red short wire: Connect to driver or LED positive terminal.
3. Black wire: Connect to DC- negative input terminal.
4. White wire: Connect to driver or LED negative terminal.
Usage Instructions:
Connect the switch according to the wiring diagram. Power on to activate normal operation. When human movement is detected, the switch automatically closes and the light illuminates.
Package include:
Motion Sensor Switch x1
