Grove PN532 NFC Module WIth NFC Antenna 13.56MHz Contactless Communication Support ISO14443 Type A and Type B protocols I2C UART

Grove – NFC built around PN532 module Contactless communication at 13.56MHz. Support ISO14443 Type A and Type B protocols and I2C or UART communication protocols.

Description

Grove – NFC built around PN532 module Contactless communication at 13.56MHz. Support ISO14443 Type A and Type B protocols and I2C or UART communication protocols.

Features

Detection of long-distance: Max operating distance for detecting NFC tags is 28mm depending on the current antenna size

The radio frequency of 13.56Mhz: Serve for contactless communication at 13.56MHz

Support ISO14441 protocols: Support ISO14443 Type A and Type B protocols

I2C/UART interface conversion: Support host interface: I2C, UART(default)

Grove compatible interface: The product ensures “Plug and Play” and could be versatile for various applications of Grove

Description

Near Field Communication (NFC) is a set of short-range wireless technologies. It’s behind daily applications such as access control system and mobile payment system.

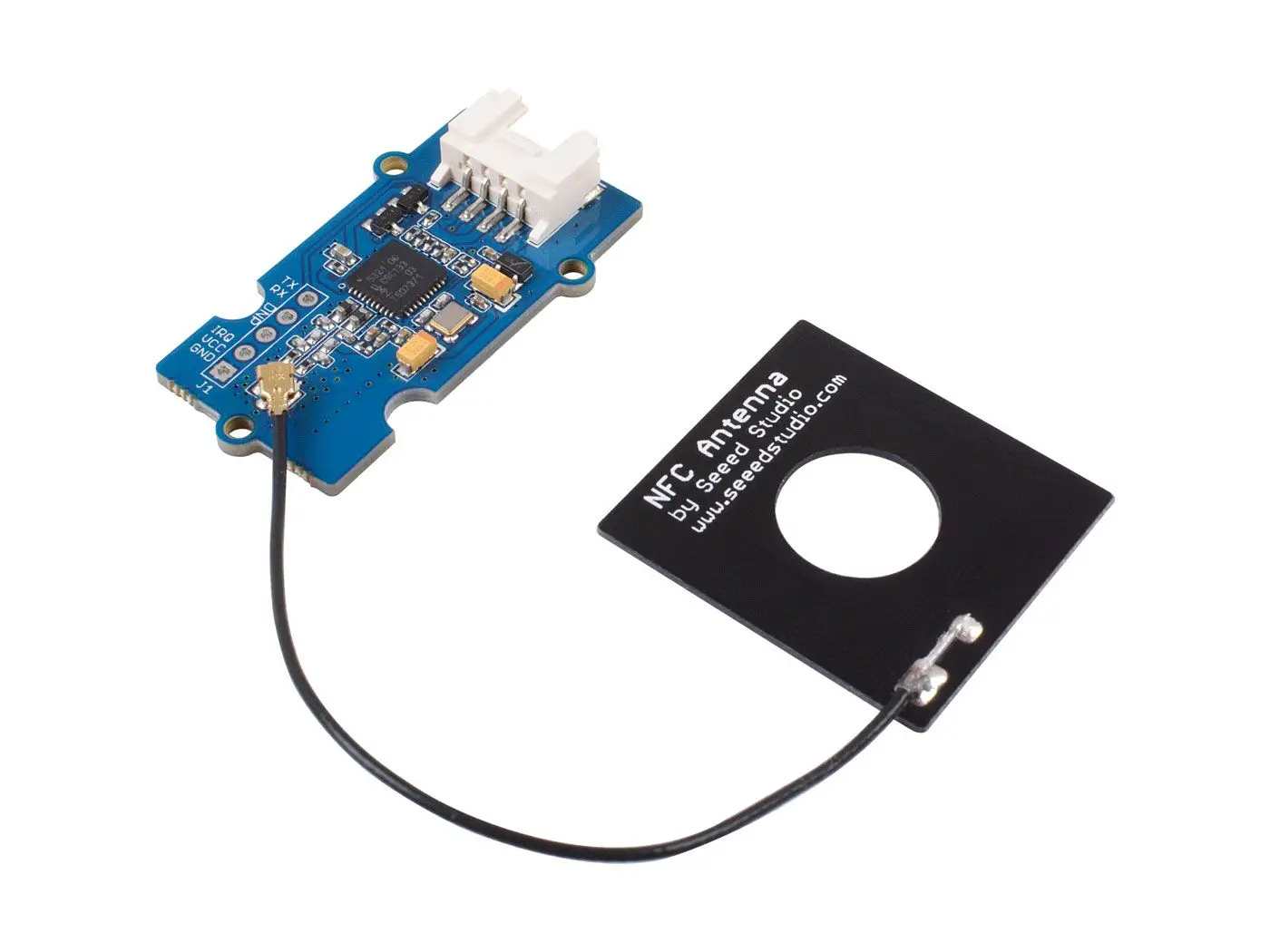

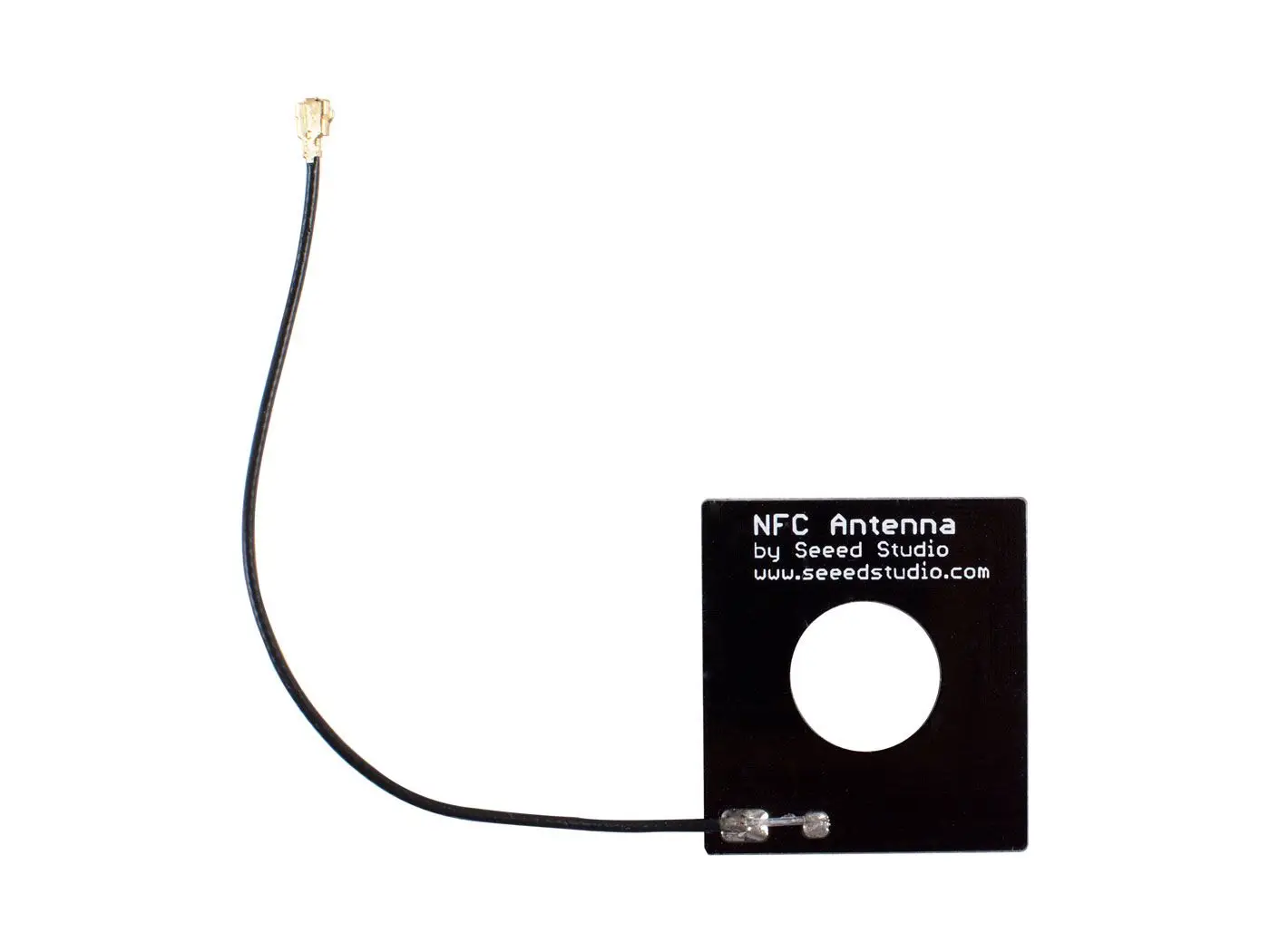

Grove NFC features a highly integrated transceiver module PN532 which handles contactless communication at 13.56MHz. You can read and write a 13.56MHz tag with this module or implement point to point data exchange with two NFCs. Grove NFC is designed to use I2C or UART communication protocols, and UART is the default mode. In addition, we assign an independent PCB antenna which can easily stretch out of any enclosure you use, leaving more room for you to design the exterior of your project.

We have developed more than 400 Grove modules, covering a wide range of applications that can fulfil various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your use of the product.

Application

Access control system

Electric business card

IC card

Smart Home

Electric toys

IoT systems

NFC pay

Specification

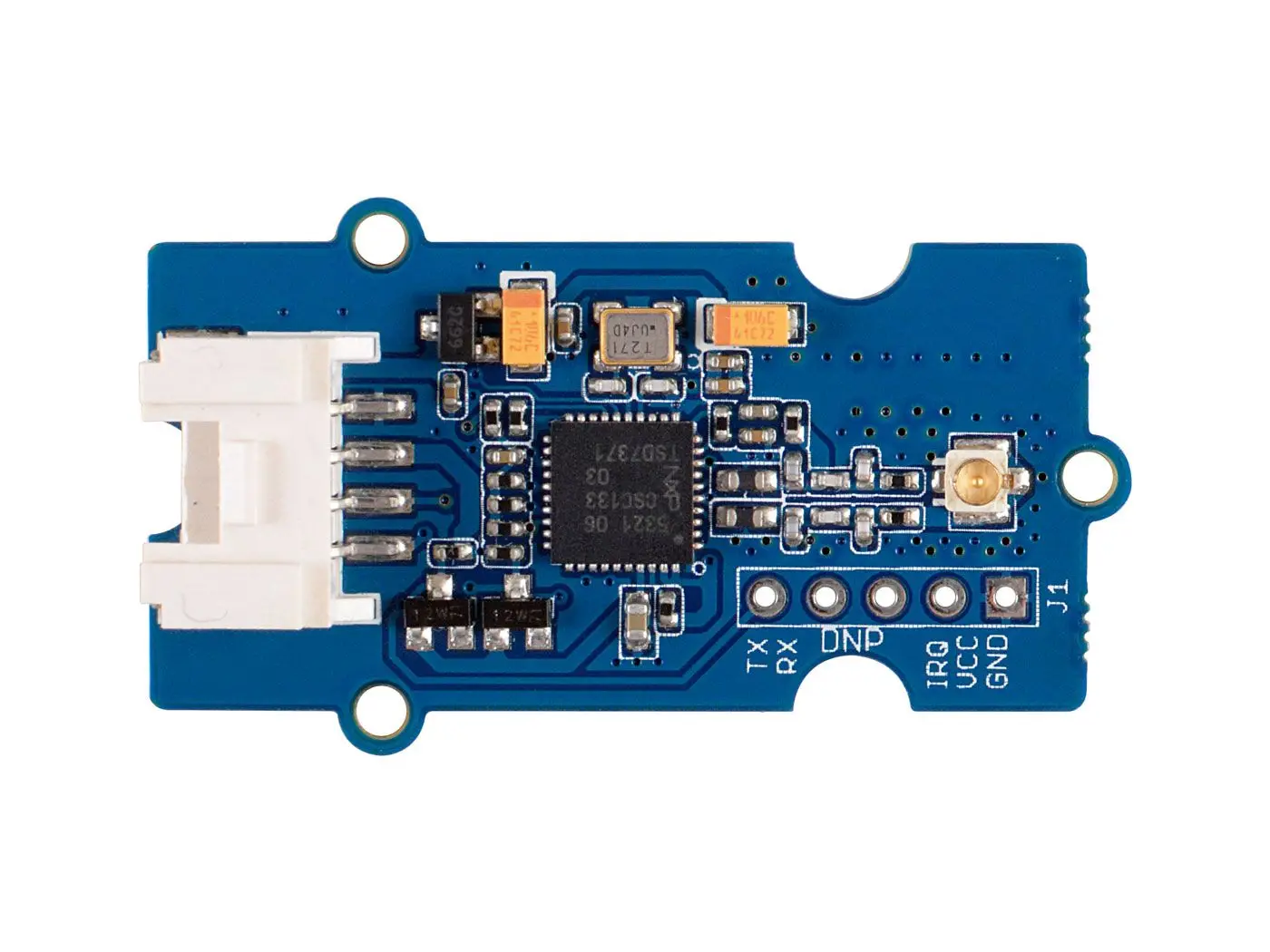

Hardware Overview

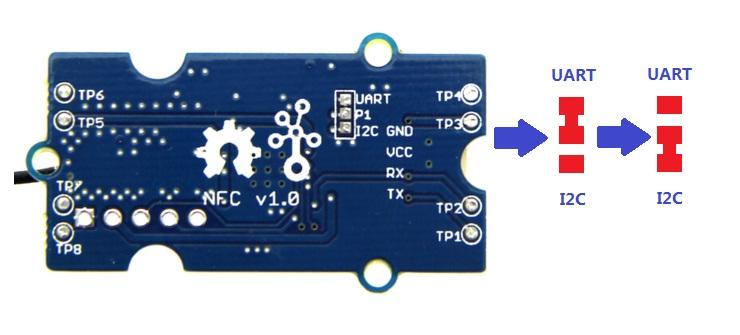

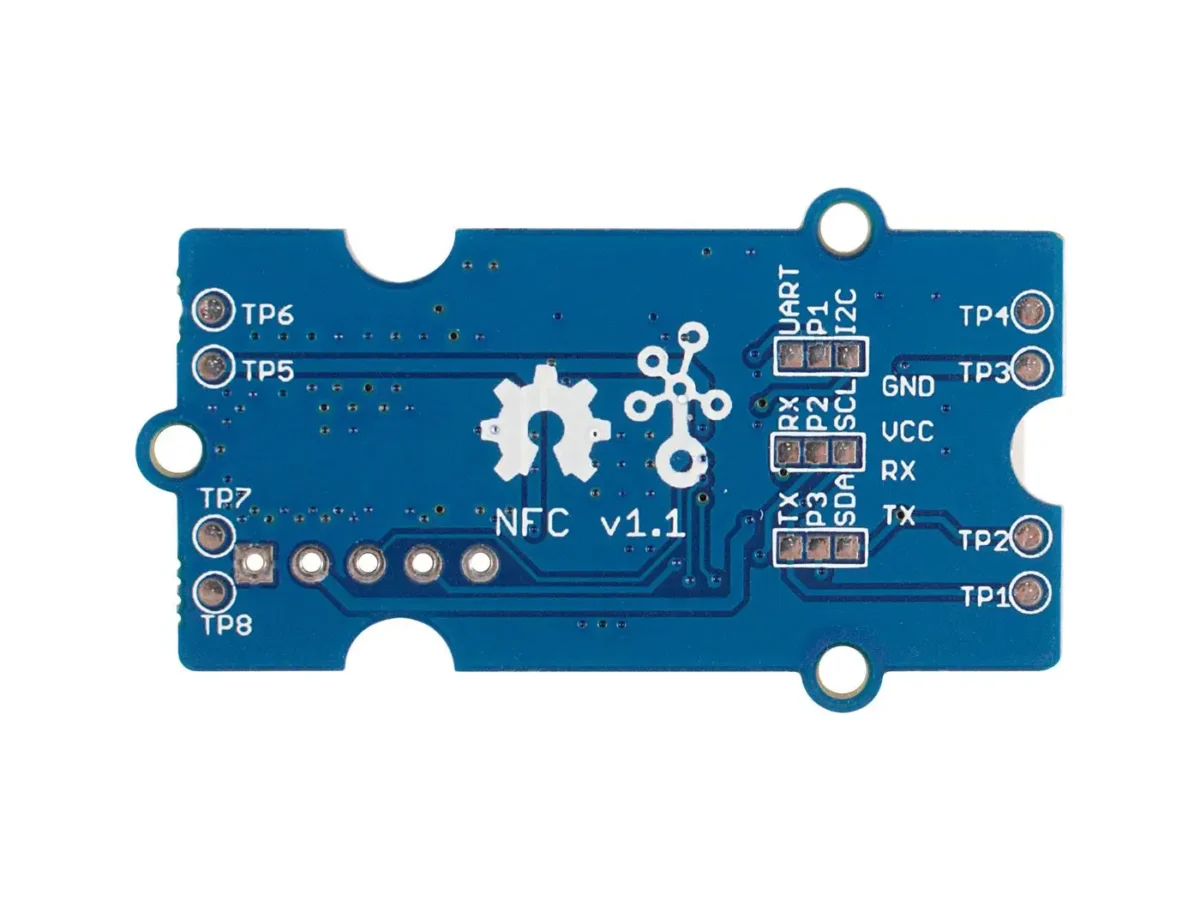

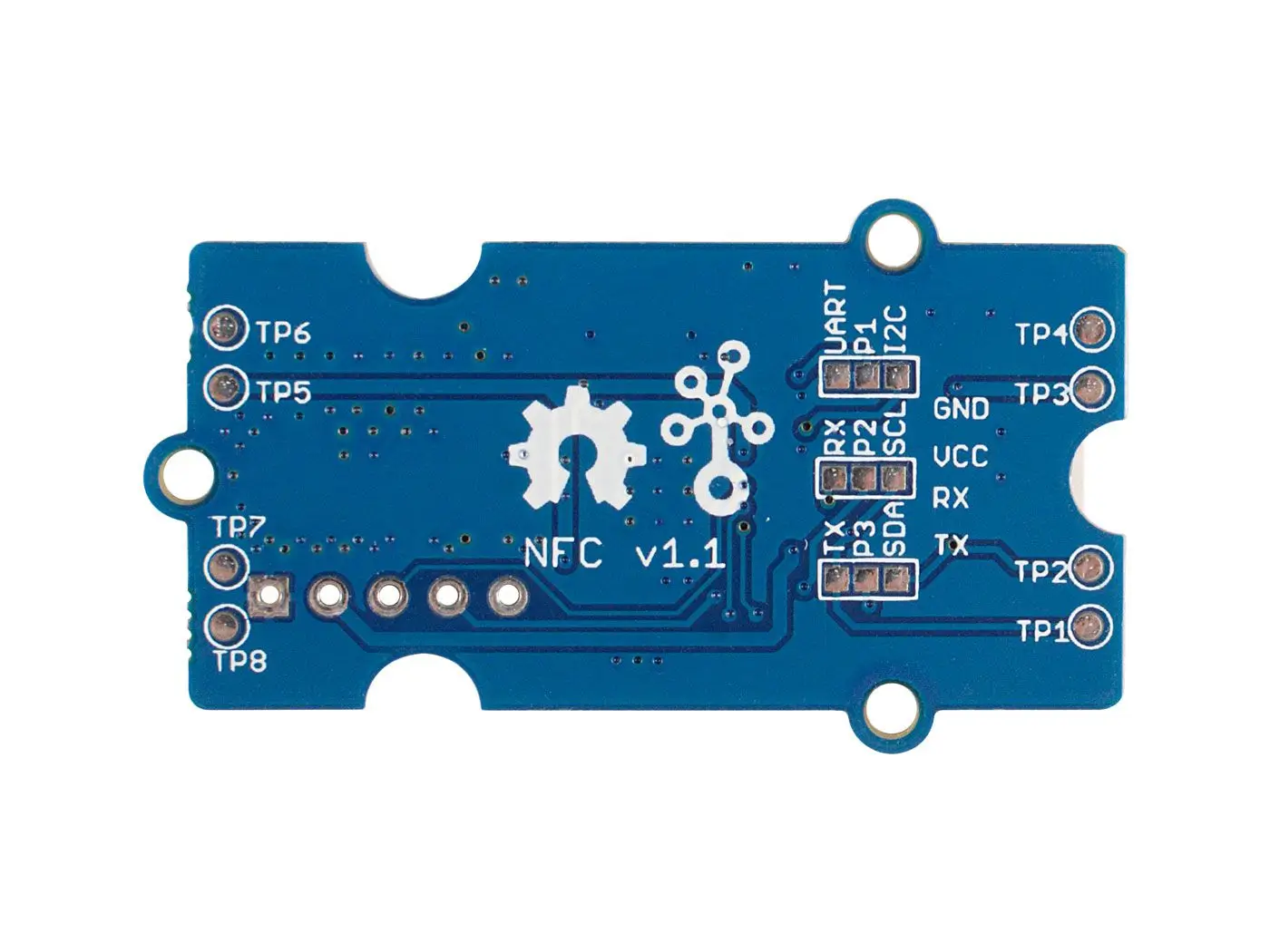

The default setting is UART, if you need to change it into I2C, then you should do some soldering at first.

Cut following connections:

TP1 to UART

TP2 to RX

TP3 to TX

Solder following connections:

TP1 to I2C

TP2 to SCL

TP3 to SDA

Part List
