Luckfox Lyra B Flash-Boot Version RK3506G2 Rockchip Linux Board RK3506 For MIPI/DSI Display Cortex-A7

Luckfox Lyra is a micro Linux development board based on Rockchip RK3506G2 chip, designed to provide developers with a simple and efficient development platform. This product supports a variety of high-speed interfaces, including MIPI DSI, RMII and USB, which can meet a variety of application scenarios. The low-speed interface adopts Rockchip Matrix IO design, which enables the pins supporting this design to share 98 multiplexing functions, and can freely combine PWM, UART, I2C, SPI and I2S, etc., which is convenient for rapid development and debugging.

• Tri-core ARM Cortex-A7 32-bit core with integrated VFP, supporting single-precision and double-precision floating-point operations
• Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configurations
• Built-in 128MB DDRL3 to meet the application requirements of multi-core operation
• The low-speed interface adopts Rockchip’s Rockchip Matrix IO design, which allows a variety of multiplexing functions to share limited chip pins, making peripheral circuit adaptation more flexible
• Built-in audio and video codecs, support for multiple audio input and output, and provide high-quality audio playback and recording functions


【Easier development】

Integrated Micro SD card holder, DSI screen interface and USB interface

【MIPI DSI 2-lane interface】

Compact size, powerful performance, easy to drive large screen

For display only, please refer to the configuration list for specific configuration.

*The maximum supported resolution is 1280 × 800@60Hz

【Rockchip Matrix IO Pinout】

Rockchip Matrix IO shares 98 multiplexing functions, freely configurable function pin distribution

【SLC NAND FLASH】

Onboard 256MB Flash provides you with a better user experience

Olny Luckfox Lyra B is with Flash, Luckfox Lyra need boot from SD Card

【More application】

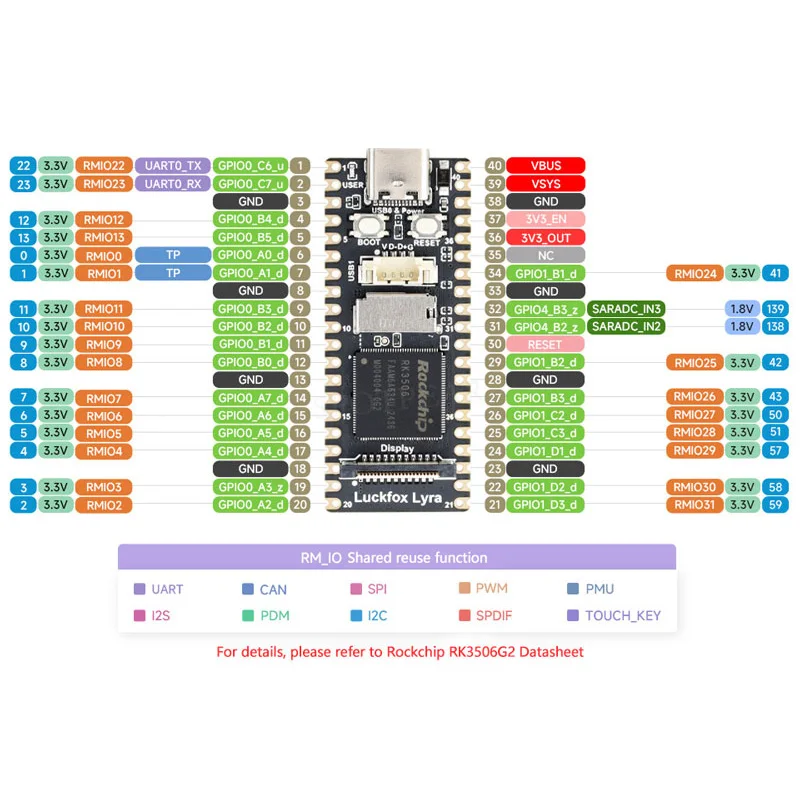

【Pin Definition】

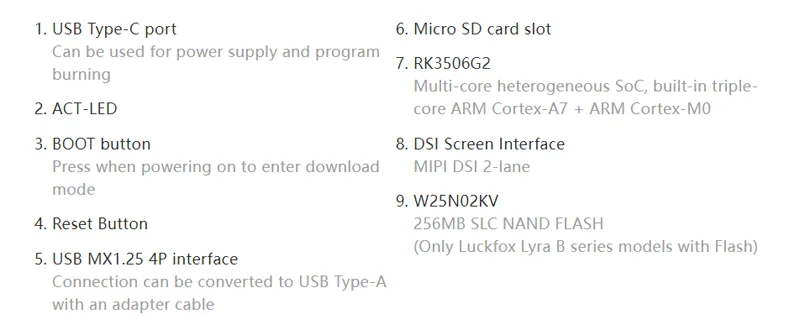

【Resource Overview】

【Product size】
