Introduction
LMT70 It is a subminiature with output enable pins、high-precision、Low power complementary metal oxide semiconductor (CMOS) Analog temperature sensor。
Multiple LMT70 The output enable pins can be used to share an analog-to-digital converter (ADC) passageway，So as to simplify ADC Calibrate the process and reduce the total cost of precision temperature sensing systems。LMT70 It also has a linear low impedance output，Support and off the shelf Microcontrollers (MCU)/ADC Seamless connection。LMT70 The heat dissipation is less than 36µW，This kind of ultra-low self heating characteristic supports its high precision and precision in a wide temperature range。It can be used as the Internet of things (IoT) Sensor node、Application of economical precision temperature sensing in medical thermometers，So is it RTD And high precision NTC/PTC Ideal substitute for thermistor。
Specification
- Module Model: LMT70
- Module Type: Precision Analog Temperature Sensor
- Power Supply: 2V-5.5V
- Temperature Coefficient: Negative temperature coefficient
- Output Slope: -5. 19mV/%C
- Temperature Measurement Range: -55°C~150°C
- Accuracy:
-
+0.059C(typ) 20°C~429C
+0.20°C(max) -20°C~90°C
+0.23°C(max) 90°C~110°C
+0.36°C(max) -55°C~150°CModule Weight: 5g
-
- Module Weight: 5g
- Module Size: 20mm x 10.5mm (L*W)
- Module Features: Power indicator, Output with low pass filter
- Application Range: Internet of Things (IoT) sensor nodes, Human body temperature monitors, Metering
- temperature compensation, etc.

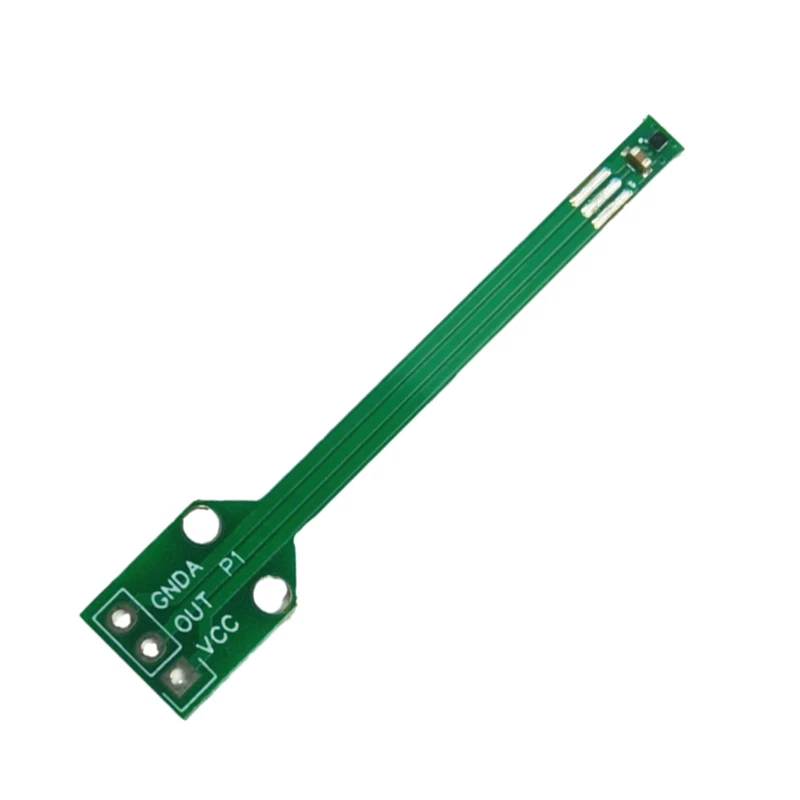

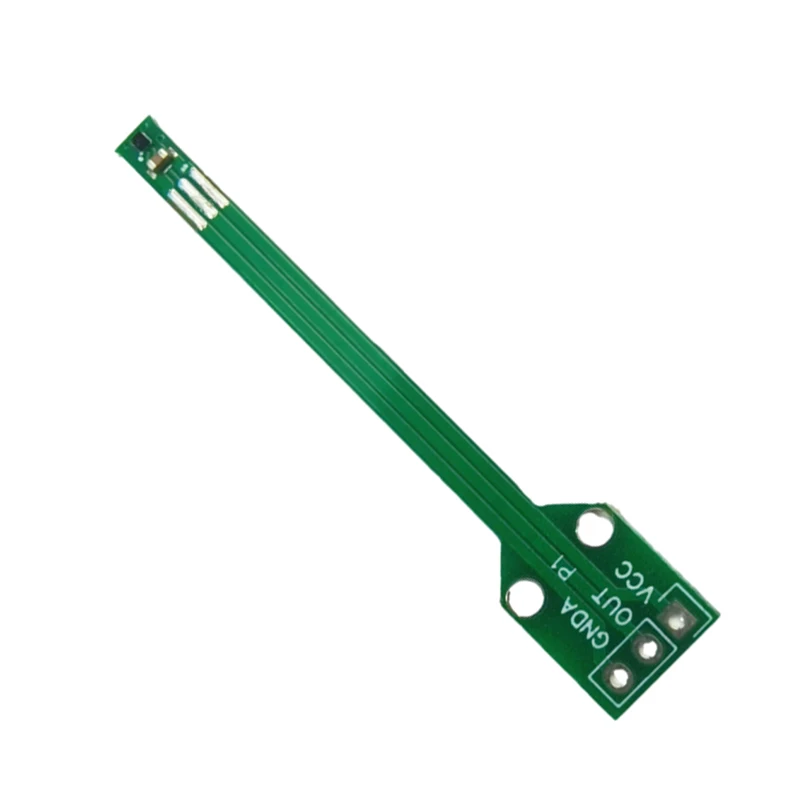

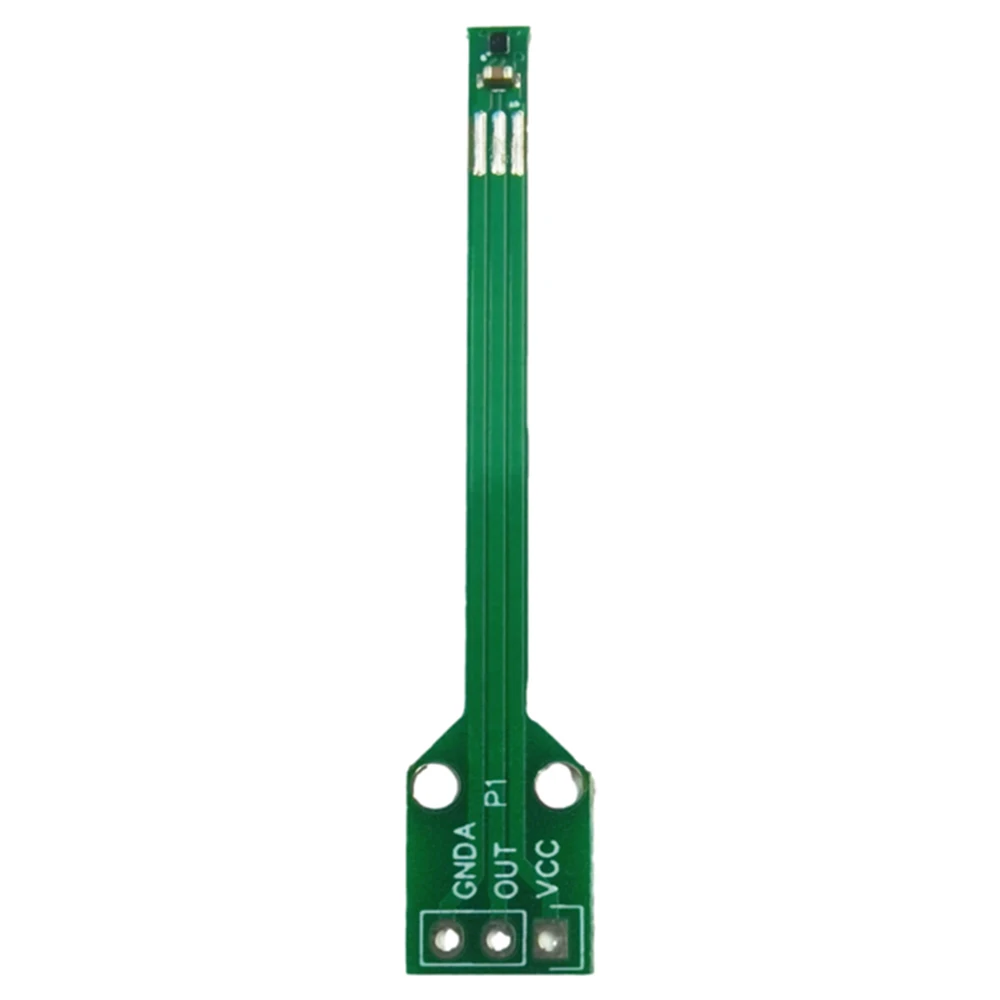

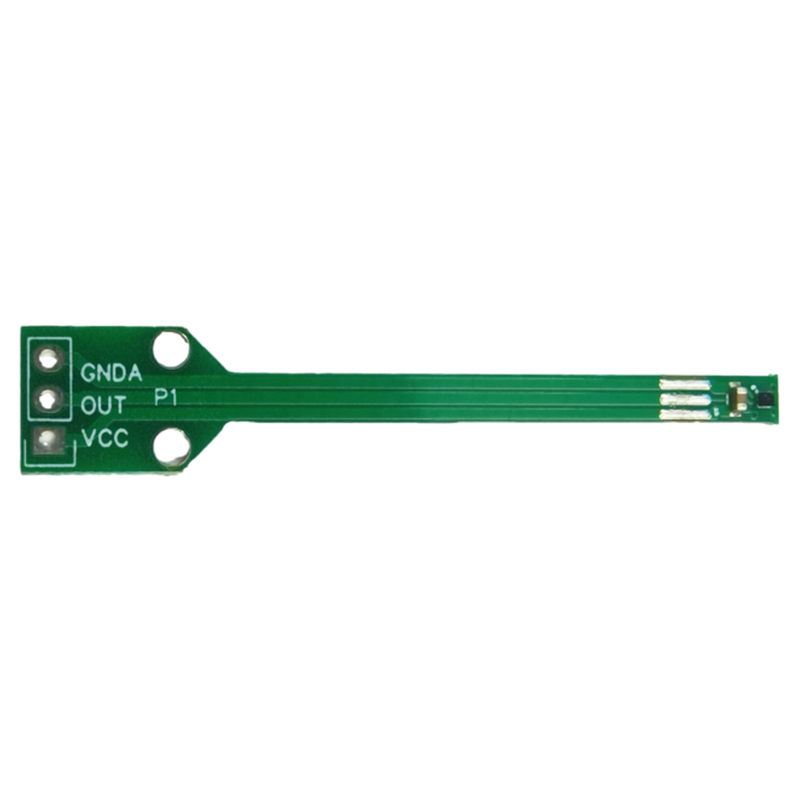

Product Image
Shipping List
- LMT70 borad*1

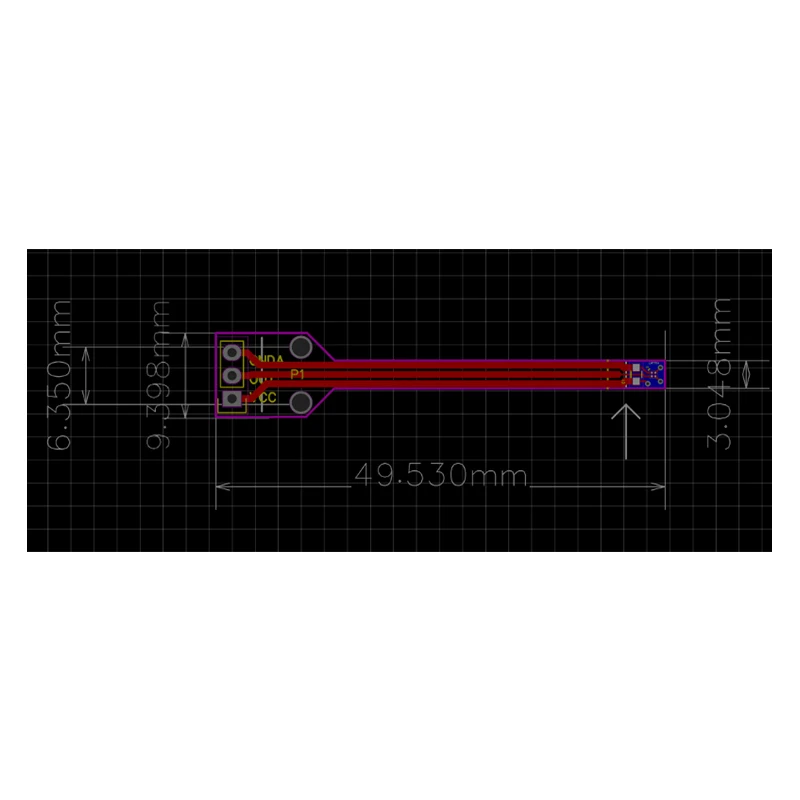

Product size
