Meshtastic Node Wio Tracker L1 LoRa Wio-SX1262 862-930MHz 868MHz 915MHz NRF52840 L76K GPS,Wireless, Low-power, Development Board

Name: Meshtastic Node Wio Tracker L1 LoRa Wio-SX1262 862-930MHz 868MHz 915MHz NRF52840 L76K GPS,Wireless, Low-power, Development Board
SKU: 1005009580365375
Availability: InStock

Price range: $35.90 through $54.90

Color

Clear

Add to compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

The Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking.

The L1 Pro version is a fully integrated, ready-to-deploy solution featuring an OLED display, rechargeable battery, and durable 3D-printed enclosure. Built for field use with no assembly required.
The L1 E-ink version supports a detachable E-ink display — optimized for ultra-low-power, always-on visual updates. Ideal for digital signage, asset tracking.
The L1 version comes with an 1.3 inch OLED status panel for real-time feedback and system monitoring.
The L1 Lite version is a compact and minimalist development board — perfect for embedded integration and advanced customization.

Feature

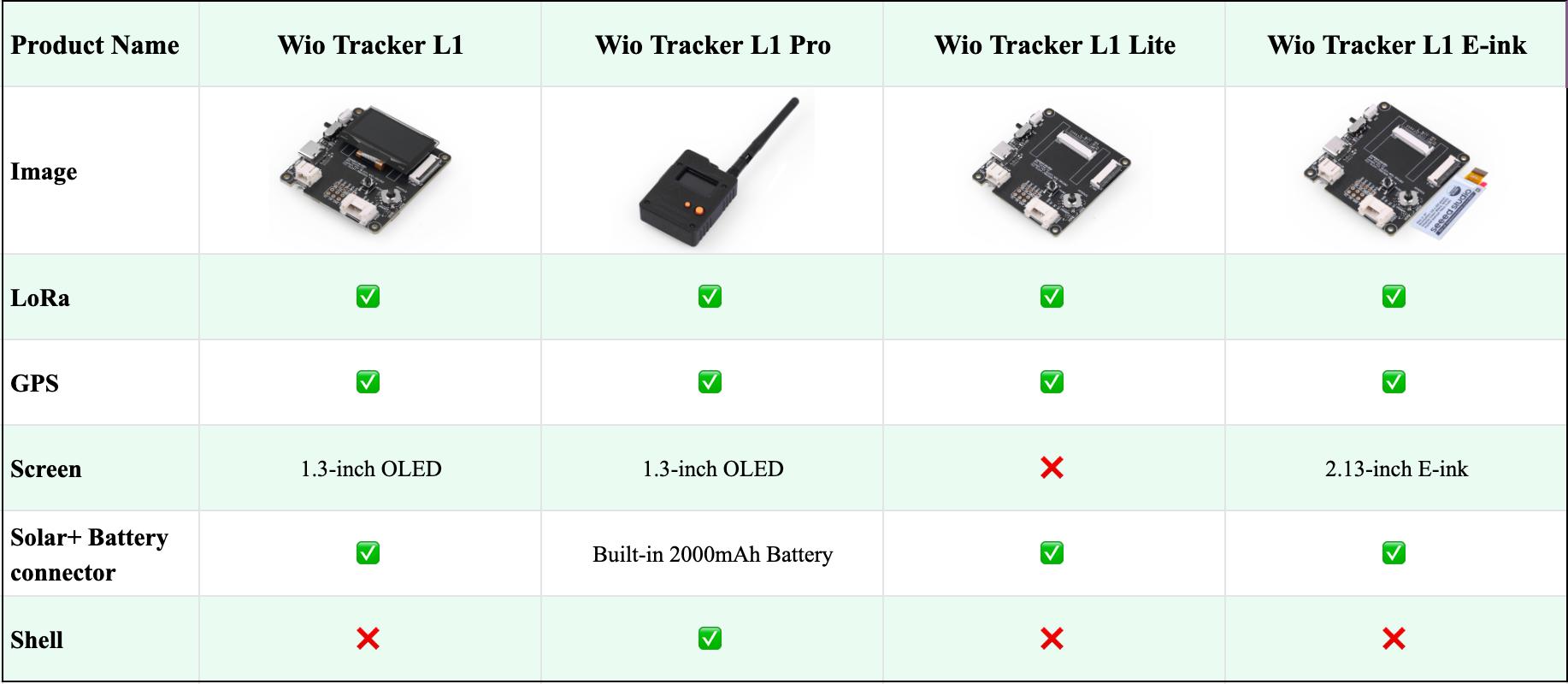

Note: The Wio Tracker L1 Series is available in four versions—choose the one that best fits your needs.

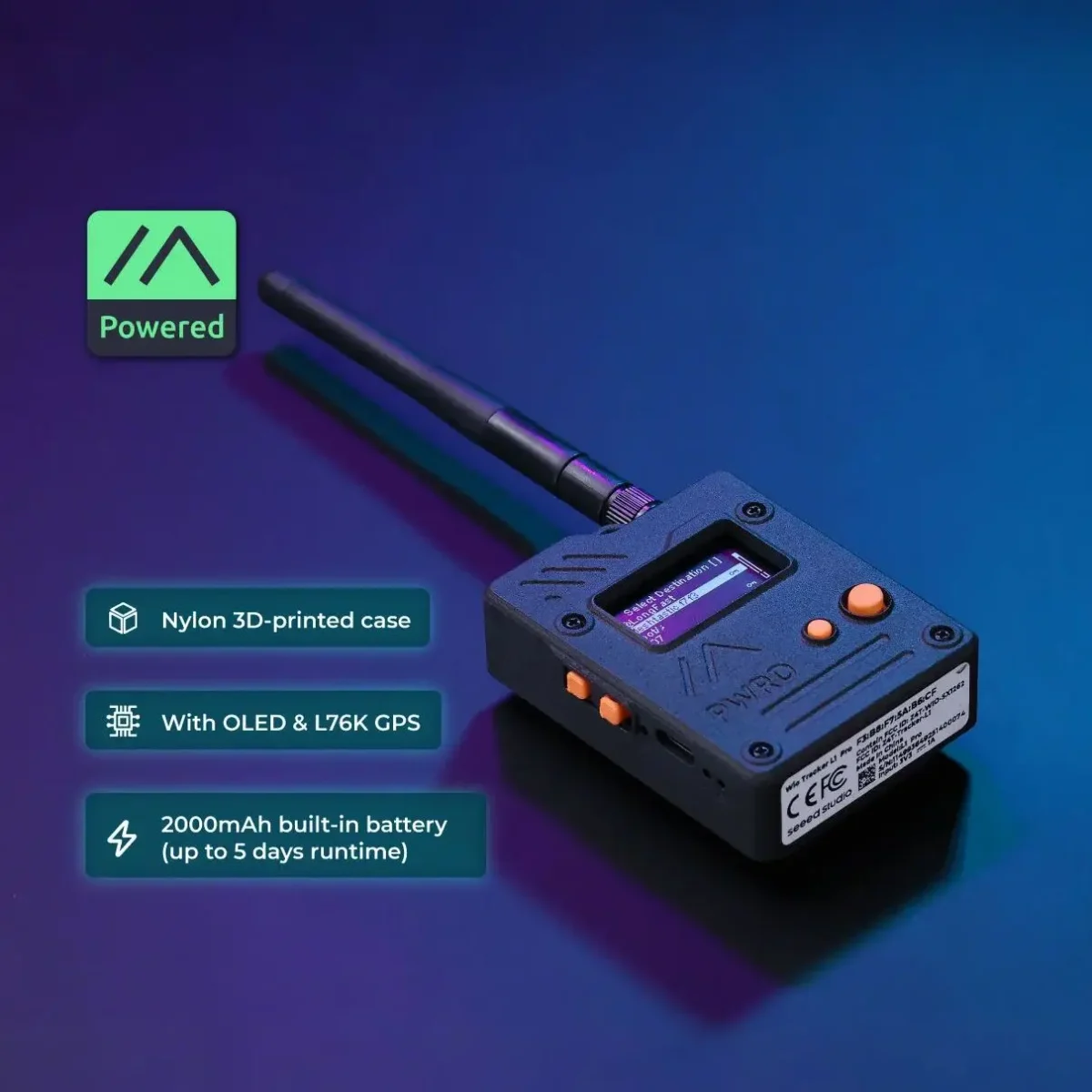

Ready-to-Use 3D-Printed Enclosure

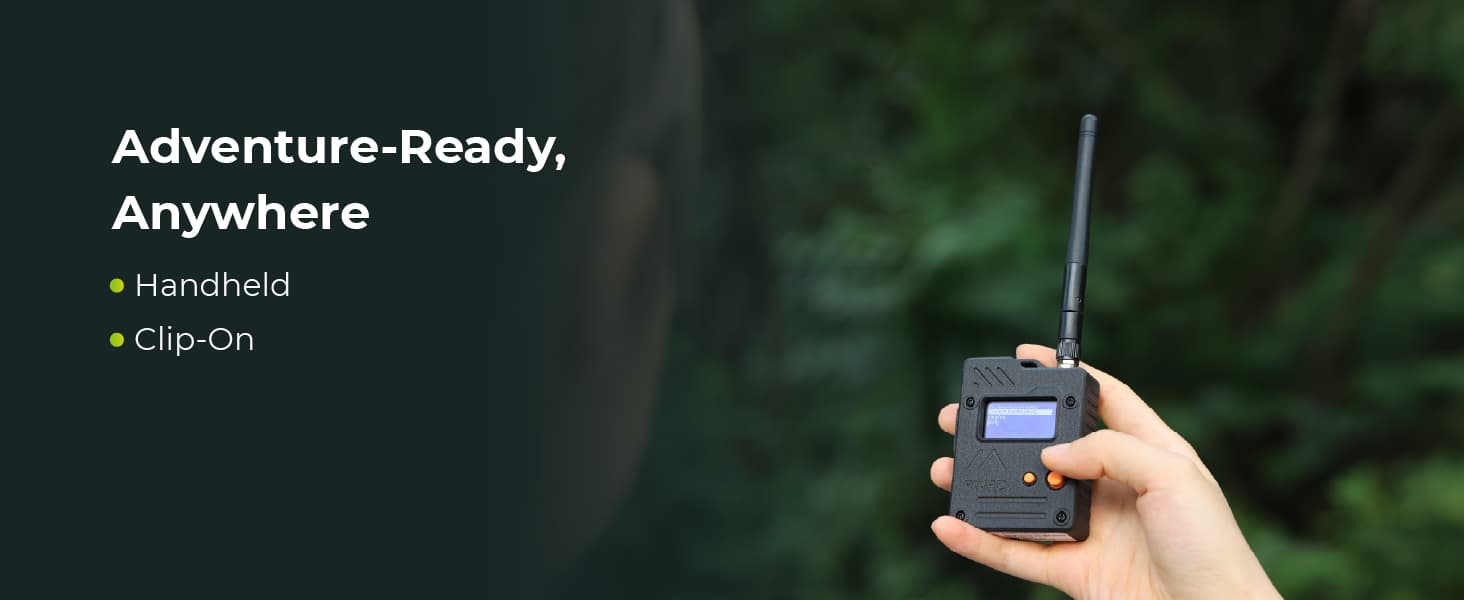

The L1 Pro comes with a rugged, lightweight 3D-printed enclosure designed for immediate use—no additional assembly needed. Whether handheld or clipped onto gear, it’s built for adventure in any environment.

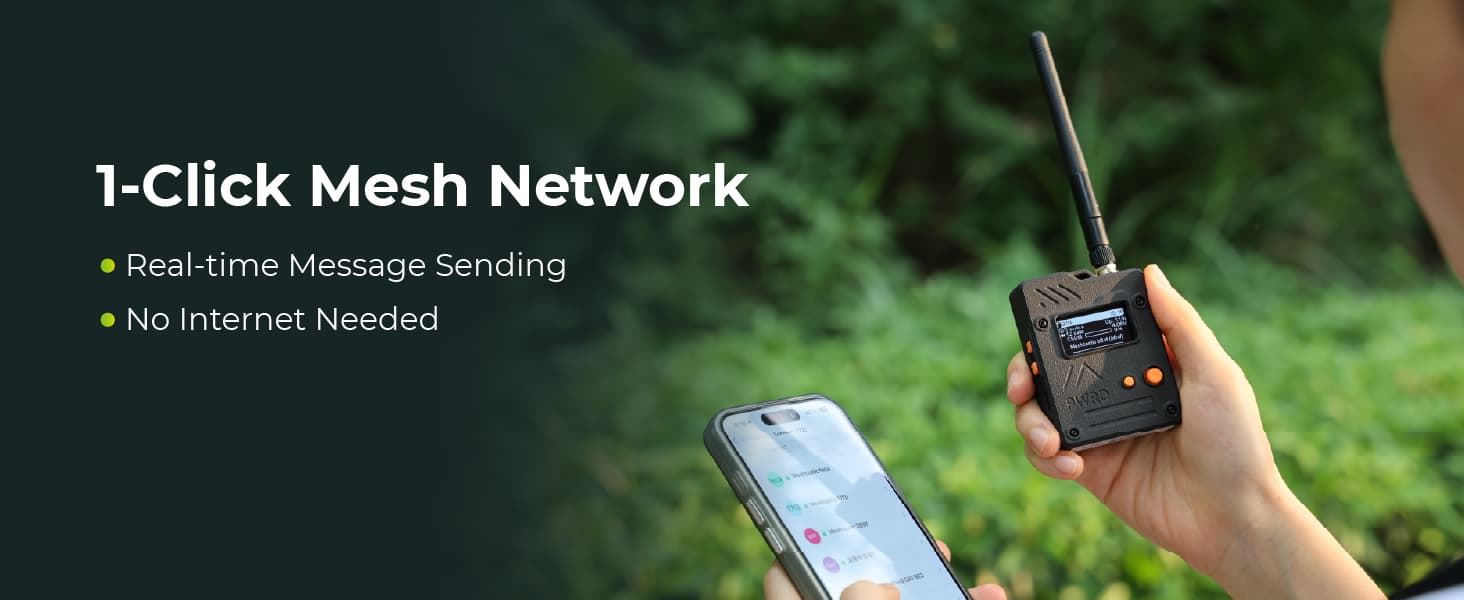

Pre-flashed with Meshtastic firmware

Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.

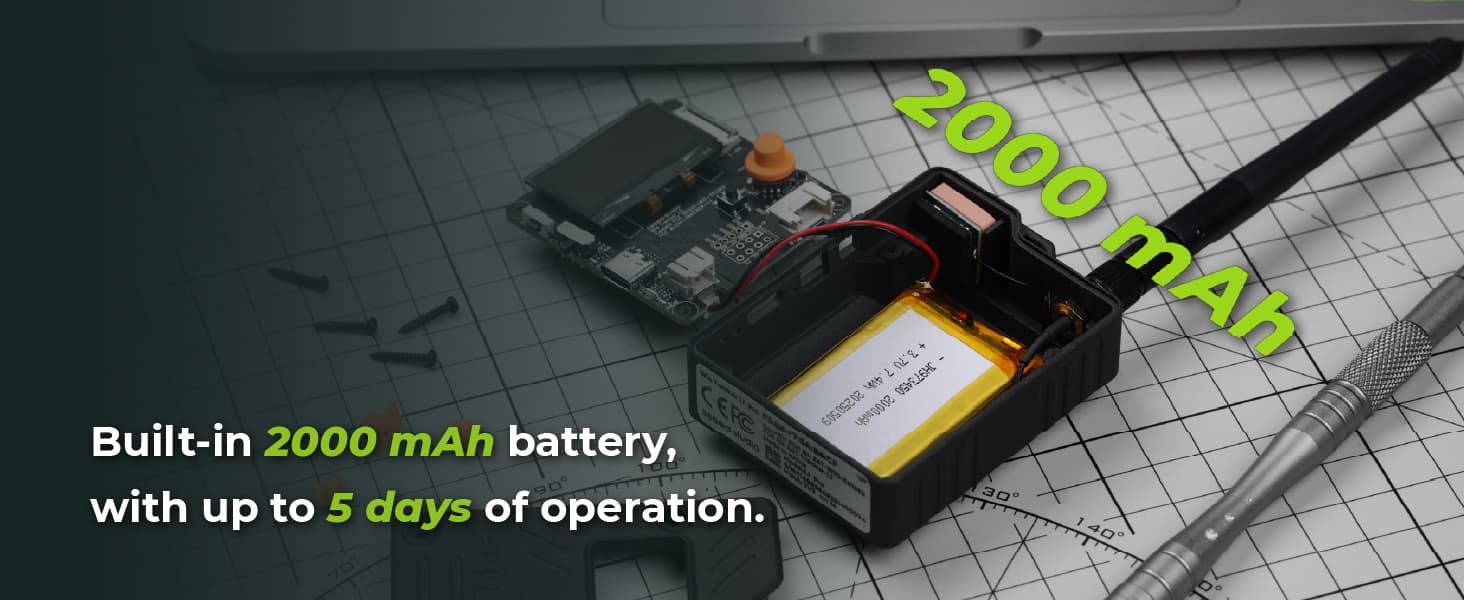

Triple Power Supply Options

Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.

High Expandability

Fully compatible with the Grove ecosystem, and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.

Specification

Processor	Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz
On-chip Memory	1 MB flash and 256 kB RAM
Wireless	LoRa: Based on Wio-SX1262, supports 862-930MHz
Wireless	Bluetooth 5.0
GPS	L76K(GPS,BeiDou,GLONASS,QZSS)
OLED Display	Size: 1.3 inch
	Resolution: 128*64 pixels
	Active Area(mm): L34.5W23.0H1.47
Power	Type-C: 5v—1A
	Solar energy interface: 5v—1A
	Battery interface: 3.7v—1A
Certification	FCC, CE, RoHS

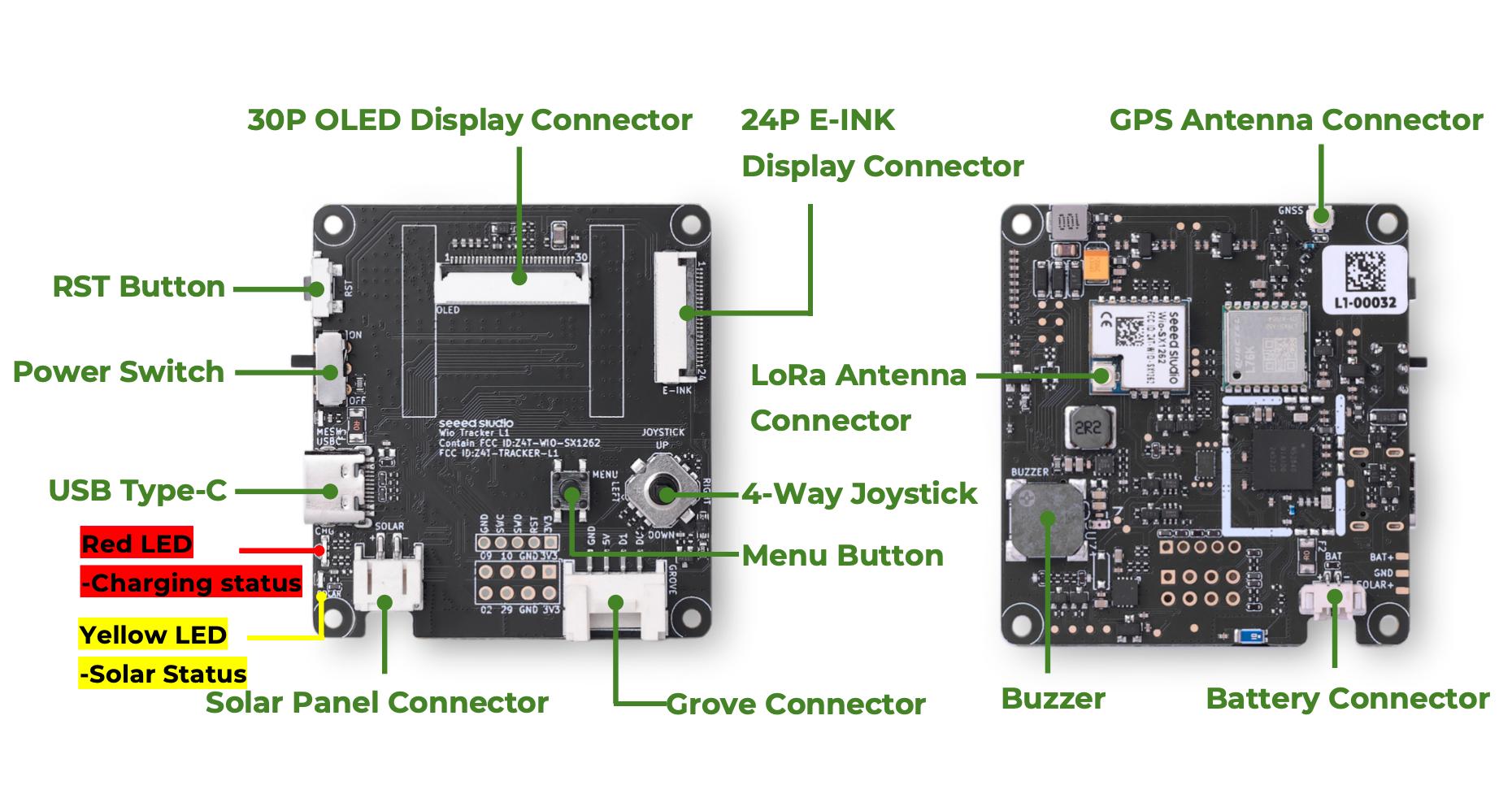

Hardware Overview

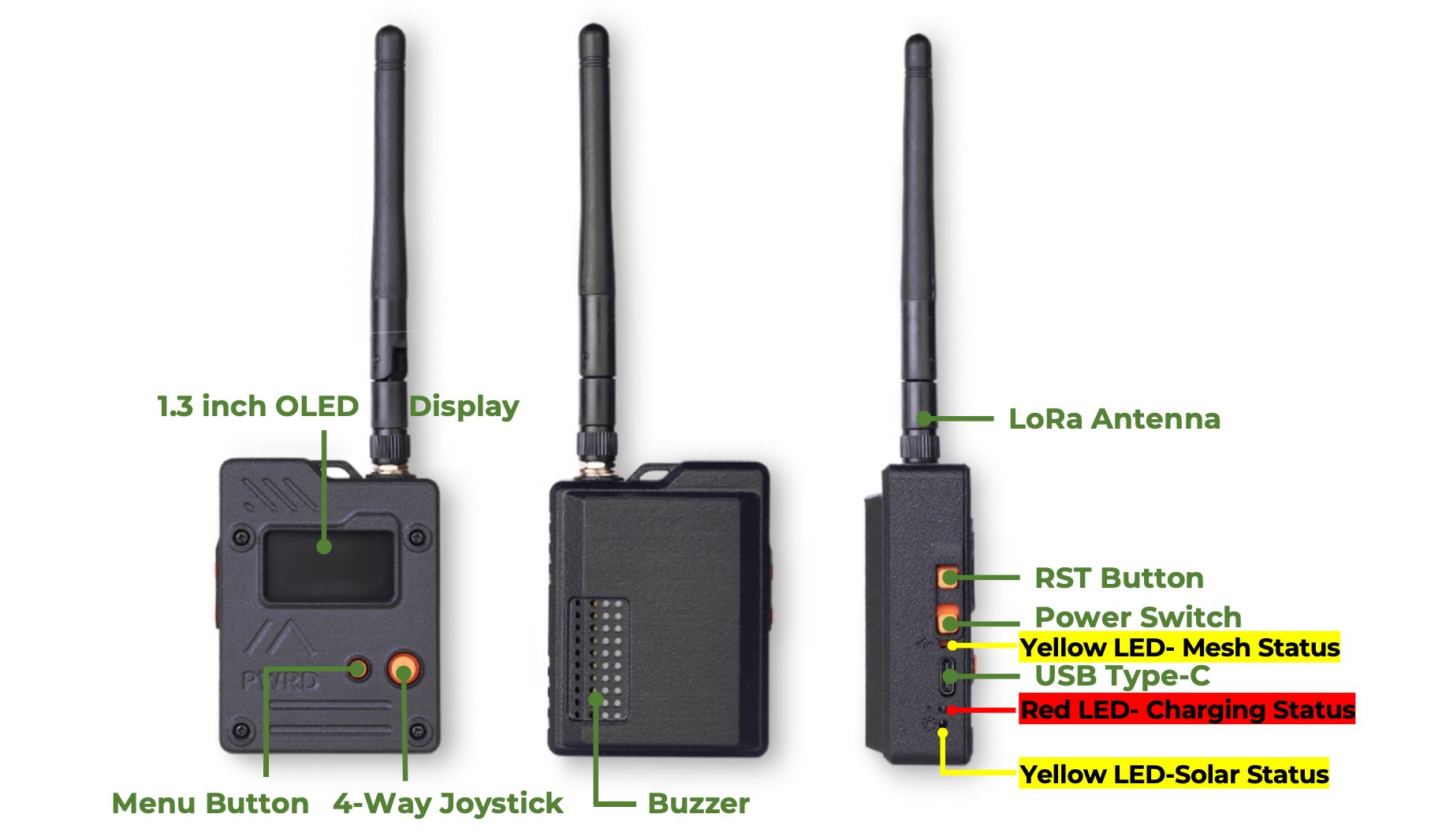

Wio Tracker L1 Pro With OLED & Casing ⬇

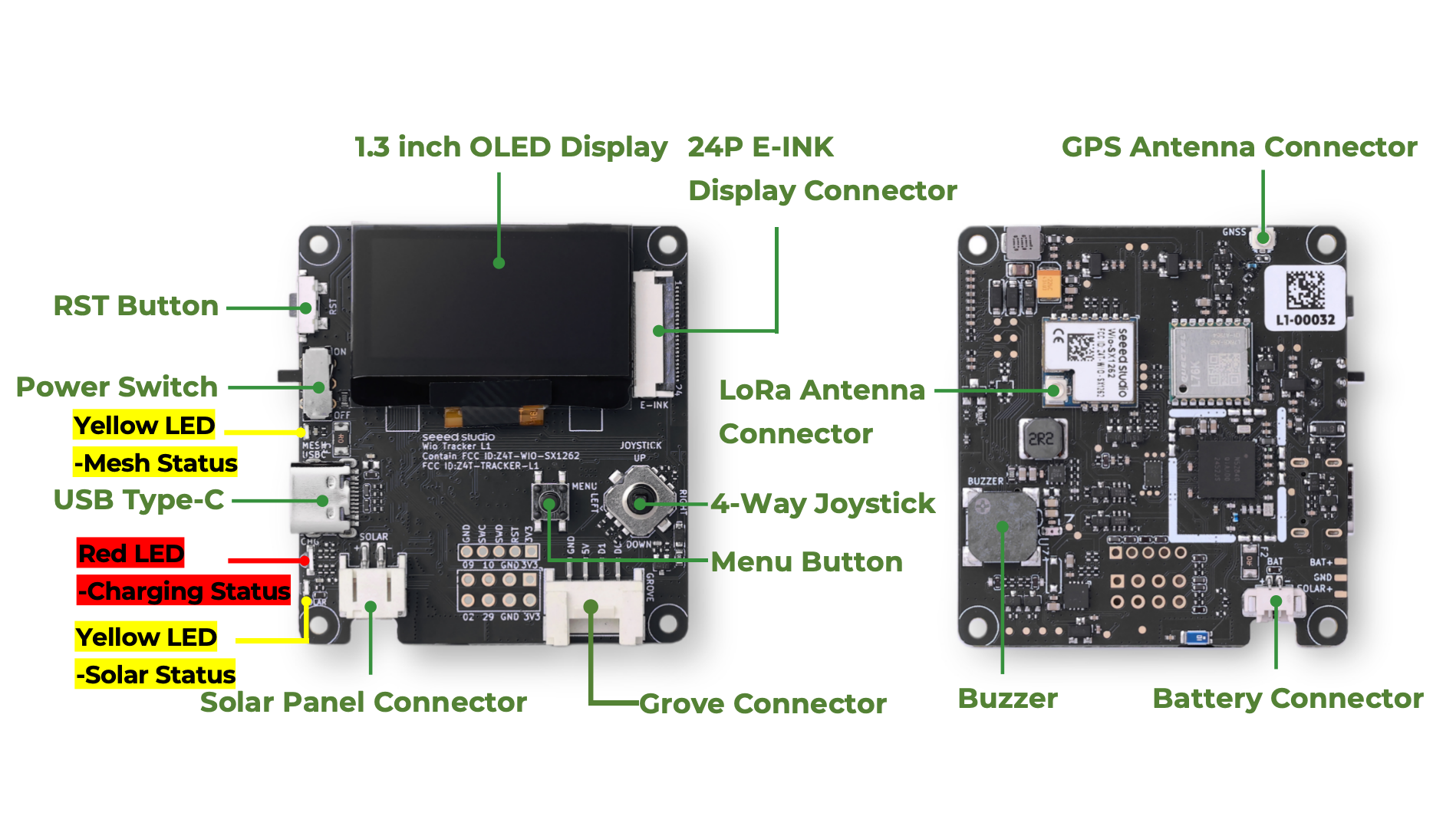

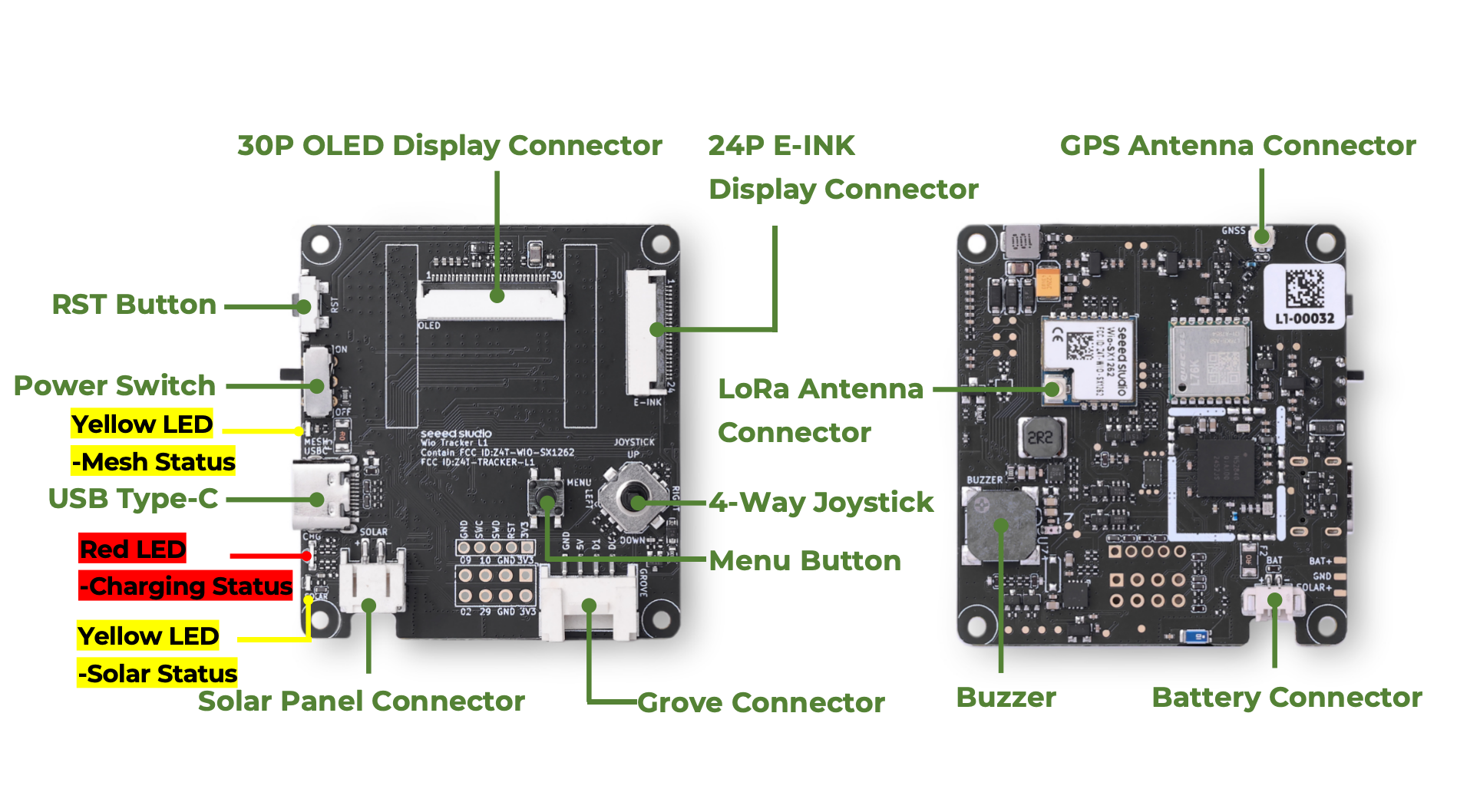

Wio Tracker L1 E-ink ⬇Wio Tracker L1 With OLED ⬇Wio Tracker L1 Lite ⬇

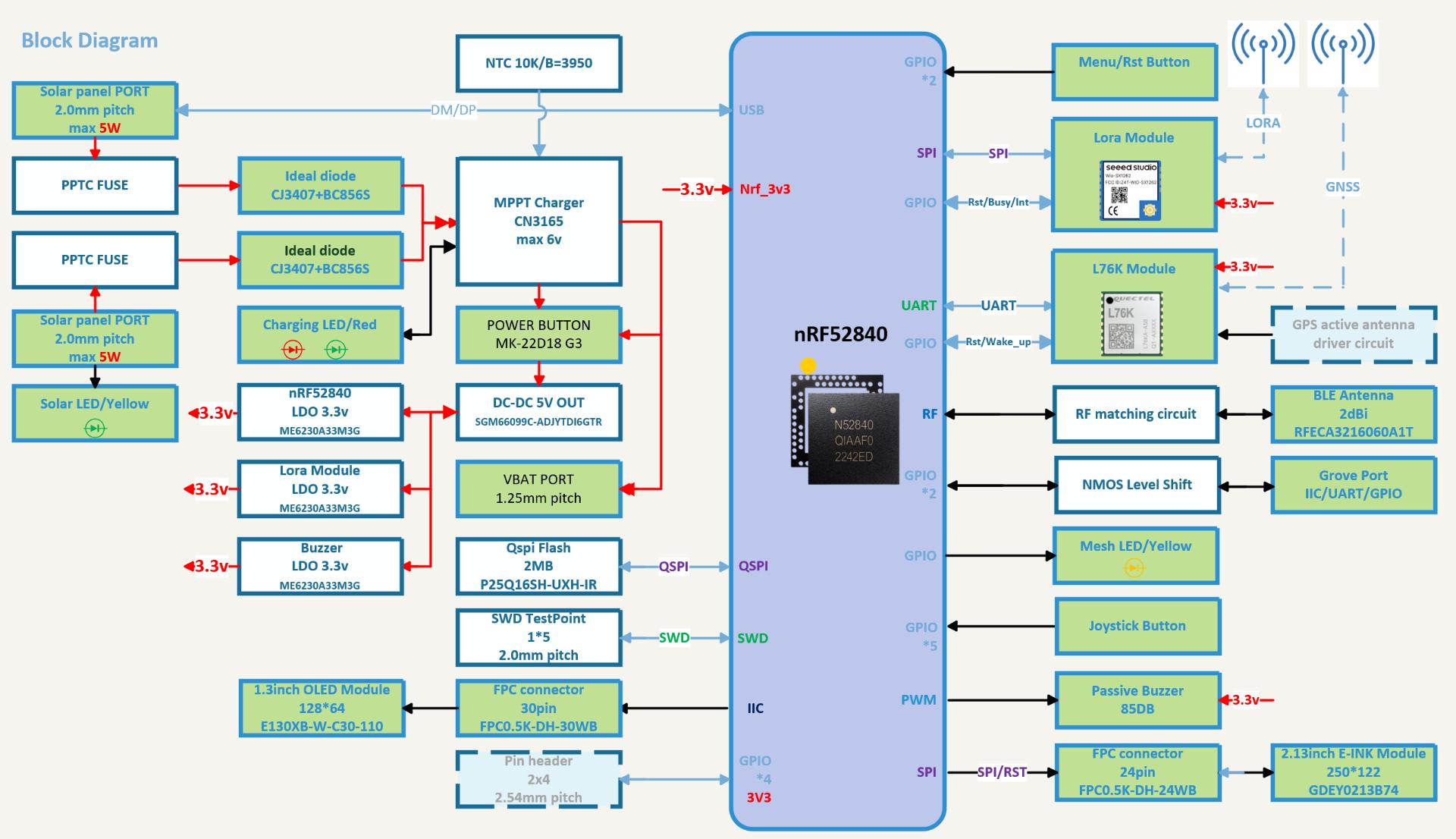

Diagram

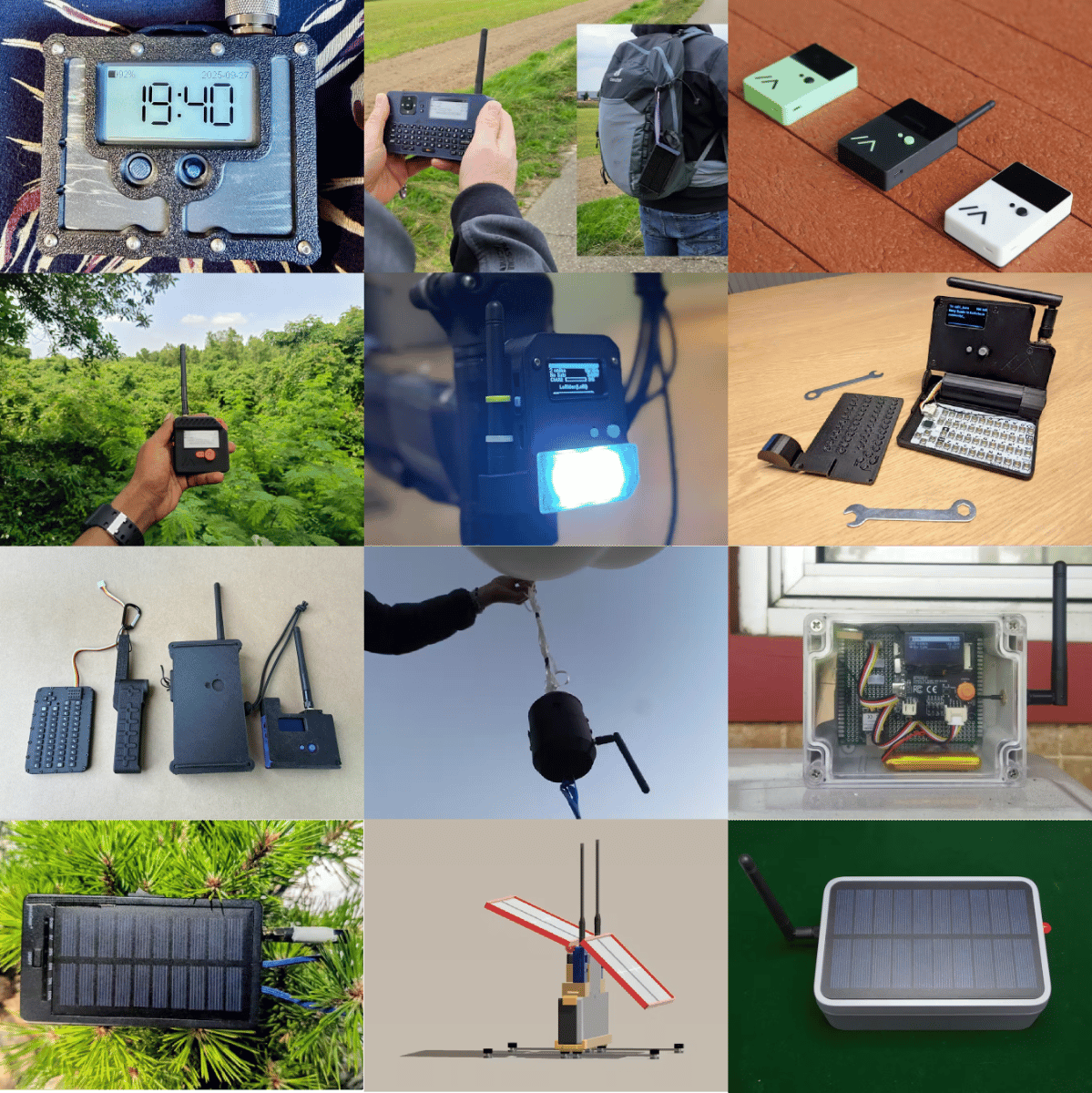

Explore what our community has built!

Discover all the amazing projects from the Meshtastic Device Design Challenge — powered by Seeed and Hackster.io and Meshtastic.
See how community members around the world used Wio Tracker L1 Series to bring their creative ideas to life.
