Orbbec Gemini 2 3D Camera, Active Stereo IR 30fps 0.15–10 m Depth, 91°×66° FOV, USB‑C, IMU, SDK Support for Robotics

Name: Orbbec Gemini 2 3D Camera, Active Stereo IR 30fps 0.15–10 m Depth, 91°×66° FOV, USB‑C, IMU, SDK Support for Robotics
SKU: 1005009631352221
Price: 360.90 USD
Availability: InStock

$360.90

In stock

Add to compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

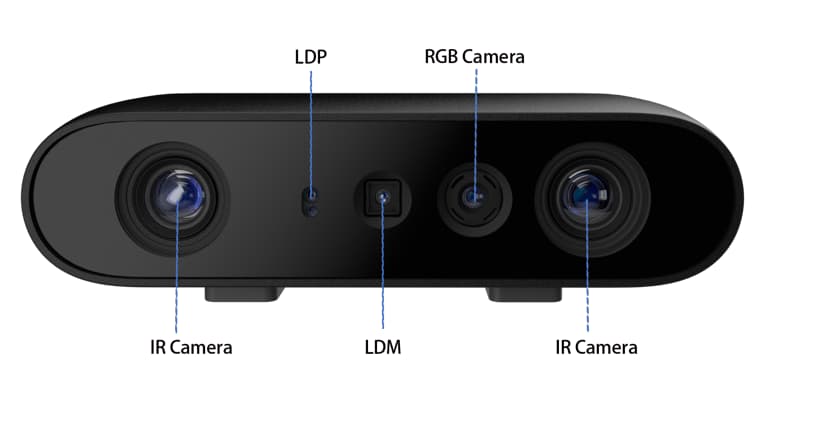

The compact Gemini 2 3D camera is based on Active Stereo IR technology and is equipped with Orbbec’s latest custom ASIC for high quality depth processing, IMU, and single cable USB 3.0 power + connectivity.

The wide FOV and the wide depth sensing range makes Gemini 2 adaptable for many applications, especially for robotics.

It is easy to set up and operate with the Orbbec SDK and delivers extremely accurate and reliable data in various lighting conditions from pitch black to semi-outdoor.

Feature

Active Stereo IR Employs active stereo IR technology for depth output, enabling accurate and reliable data output in various lighting conditions
Wide Sensing Range Provides quality depth data output from 0.15m to 10m
Wide FOV Provides wide field of view data at 91-degree horizontal and 66-degree vertical
Multi-camera synchrnoization Supports multi-camera synchronization for both depth image and RGB image
USB Connection Uses single USB 3.0 Type-C cable for power and connectivity

Specification

Product	Orbbec Gemini 2
Voltage	5V (USB Type-C)
Depth Technology	Active Stereo IR
Operating Temperature	0℃~40℃
Mechanical Dimension	90mm x 25mm x 30mm
Communication Interface	USB 3.0 Type-C
Camera Driver	UVC
Depth Range	0.15m ~ 10m
Ideal Range	0.2m ~ 5m
Depth Resoultion	Up to 1280×800 @ 30fps
RGB Resoultion	Up to 1920×1080 @ 30fps
Horizontal FOV	91°
Vertical FOV	66°
