Fully Open-Source Ecosystem on Hardware and Software
Quick Setup & Precision Movement
🌱Lego-like assemble package support.
🌱360° yaw rotation full coverage and 180° pitch range from floor to ceiling.
🌱Brushless Motor Precision: 0.01° stepping accuracy for smooth target tracking.
AI-Powered Motion Control
🌱Ready Custom AI Models: Built-in YOLO11 with commercial license, Roboflow & SenseCraft AI support.
🌱Smart Tracking: AI auto-adjusts gimbal movement.
Flexible Development for All Skill Levels

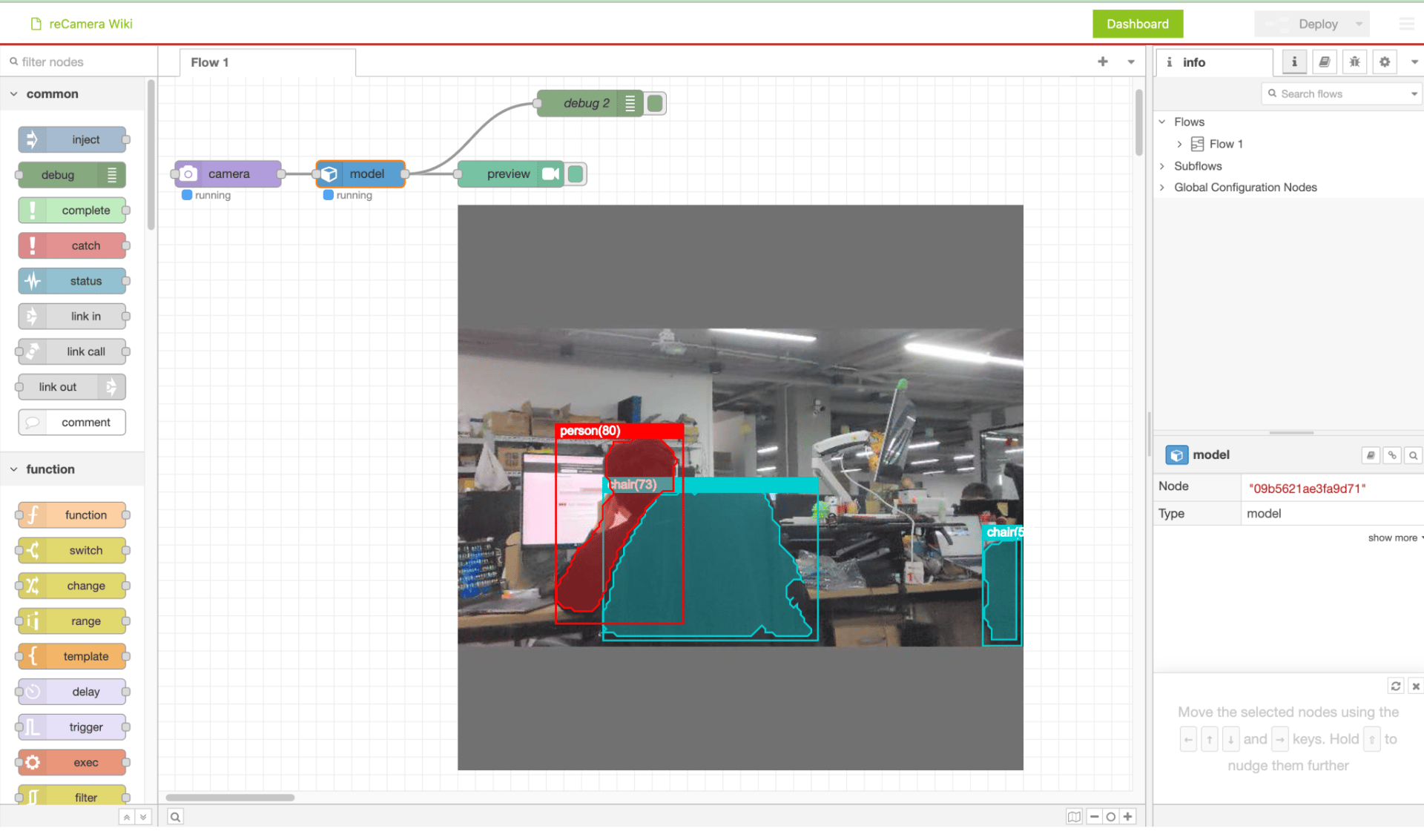

🌱Built-in Node-RED for low-code flow customization on gimbal movement.
🌱C++ SDK supported for deeper development.
|
Processing System |
||
|
SOC |
SG2002 |
|
|
CPU |
C906@1GHz + C906@700MHz |
|
|
AI Performance |
1 Tops @ Int8 |
|
|
MCU |
8051 @ 8KB SRAM |
|
|
Operating System |
Linux |
|
|
Memory |
256 MB |
|
|
Video Encoder |
5MP @ 30Fps |
|
|
Basic |
||
|
eMMC |
8GB / 64GB |
|
|
Power Supply |
12V DC Jack to XT30 connector |
|
|
Power Consumption(static) |
12V,185mA |
|
|
Power Consumption(peak) |
12V,3A |
|
|
Camera |
||
|
Camera Sensor |
OV5647 |
|
|
Resolution |
5M(2592*1944) Pixels |
|
|
Chip |
1/4″ CMOS Sensor |
|
|
Pixel Size |
1.4um |
|
|
Output Format |
RAW 10 |
|
|
Maximum Frame Rate |
Full size: 15fps |
|
|
Aperture |
F2.8 |
|
|
Equivalent Focal Length |
3.46mm |
|
|
Field of View |
65° |
|
|
Distortion |
<1% |
|
|
Lens structure |
5P |
|
|

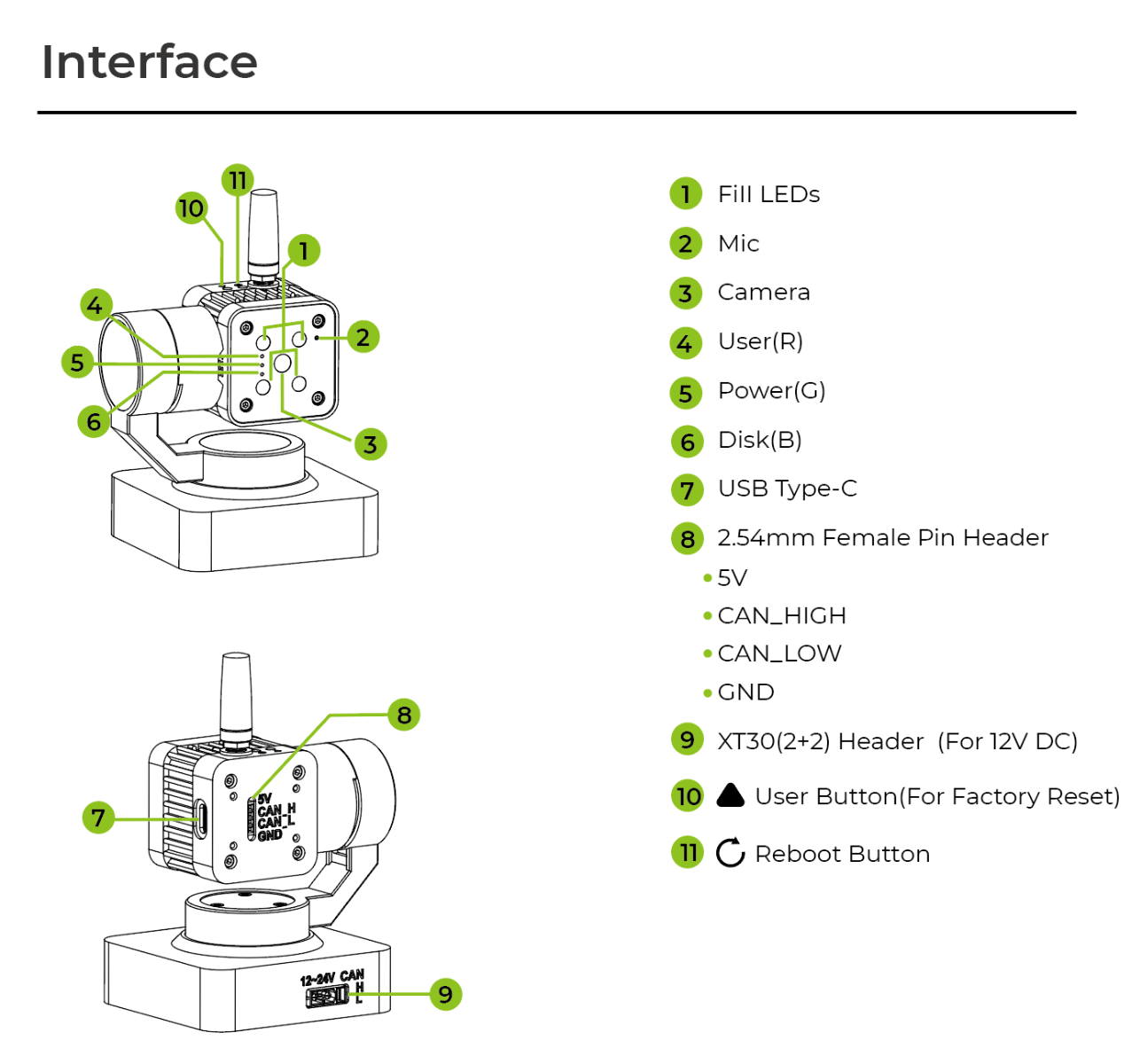

Interface |
||
|
USB |
USB 2.0 Type-C |
|
|
Wireless |
Wi-Fi 2.4G/5G Bluetooth 4.2/5.0 |
|
|
Button |
1 x Reboot Button, 1 x User Button |
|
|
Fill LEDs |
4 x 0.3w White Light |
|
|
LED |
1 x Power Indicator, 2 x IO programmable indicator |
|
|
Mic |
On-Board Mic |
|
|
Speaker |
External Speaker |
|
|
Motor Spec |
MS3008 |
MS3506 |
|
Funtion |
for Pitch Rotation |
for Yaw Rotation |
|
Turns |
54 |
60 |
|
Rated Voltage(V) |
12 |
12 |
|
Max Speed(rpm) |
2000 |
2100 |
|
Rated Torque(N.m) |
0.04 |
0.05 |
|
Rated Speed(rpm) |
1160 |
1250 |
|
Rated Current(A) |
0.64 |
0.79 |
|
Max Power(W) |
4.6 |
6.4 |
|
Motor Poles |
14 |
14 |
|
Motor Weight(g) |
49 |
63 |
|
Drive Input Voltage (V) |
6~16 |
6~16 |
|
Communication |
CAN |
CAN |
|
Communication Frequency (Hz) |
CAN@1Mbps:2KHz |
CAN@1Mbps:2KHz |
|
Encoder |
15 bit Magnetic Encoder |
15 bit Magnetic Encoder |
|
CAN Baud Rate |
100K、125K、250K、500K、1M |
100K、125K、250K、500K、1M |
|
Control Mode |
Open Loop(24KHz) /Speed Loop(4KHz) /Position Loop(2KHz) |
Open Loop(24KHz) /Speed Loop(4KHz) /Position Loop(2KHz) |
|
Ambient Conditions |
||
|
Operating Temperature |
-20～50 ℃ |
|
|
Operating Humidity |
0～90% |
|
|
Others |
||
|
Heat Dissipation |
Fanless |
|
|
Warranty |
1 year |
|
|
Mechanical |
||
|
Finished ProductDimension(W x H x D) |
68x112x71mm |
|
|
Enclosure |
Polyamide(PA) Nylon |
|
|
Weight(Net) |
230g |
|
Application🌱People Tracking and Counting
🌱Traget tracking
🌱Gesture Control
🌱Low-Code model customization，Learn AI as you Play!
🌱Open API, connect to everywhere.

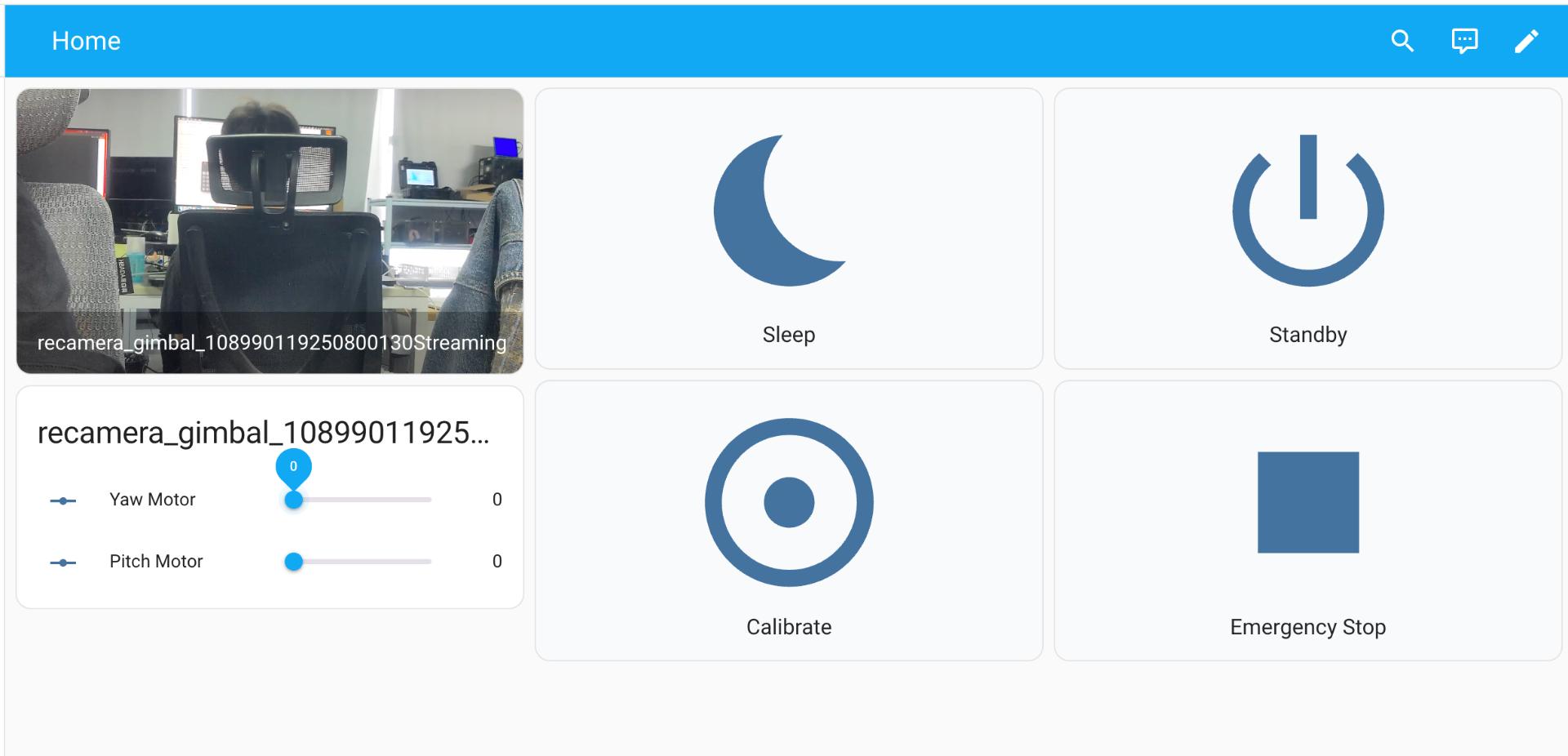

-Home Assistant

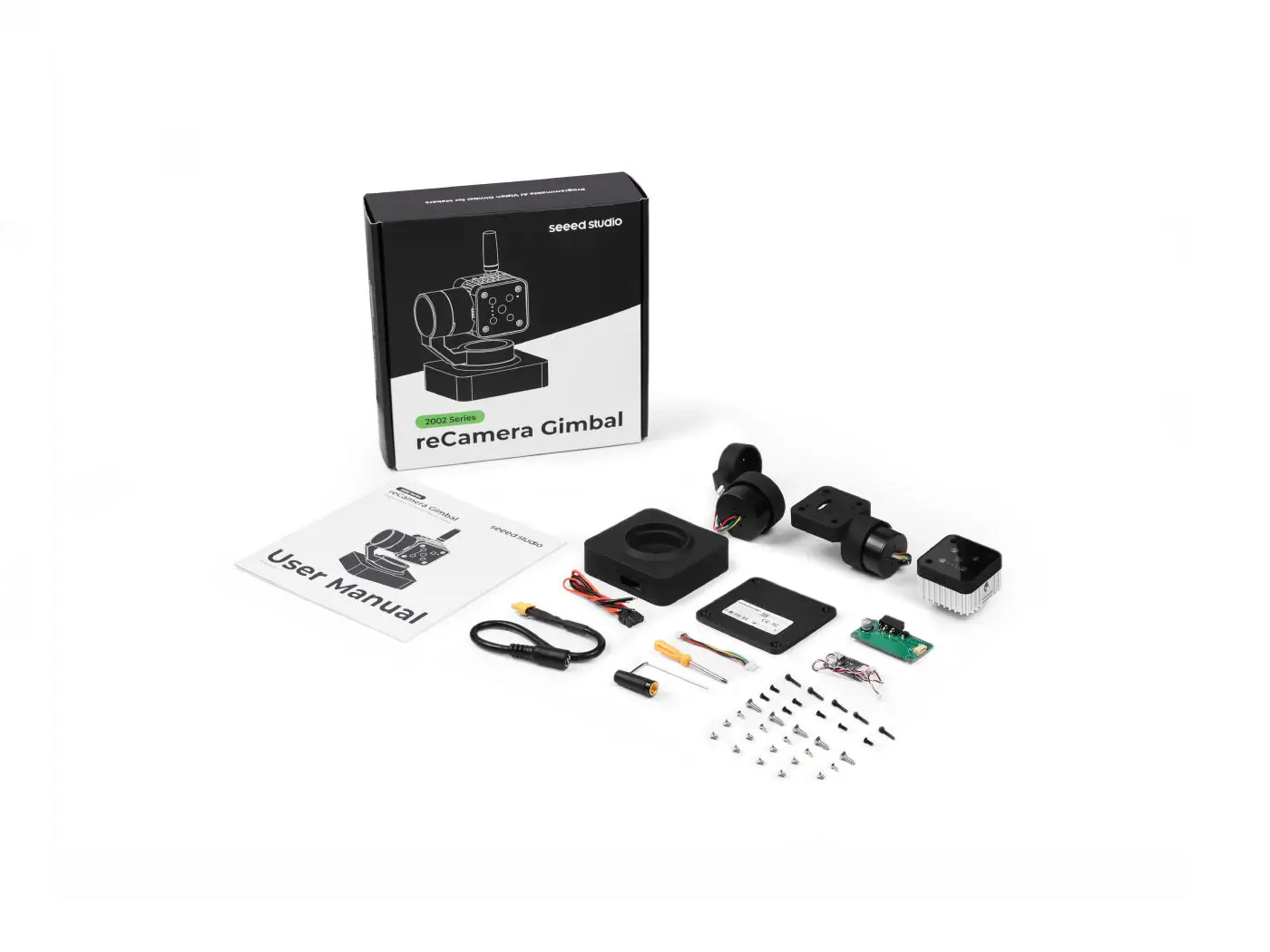

Part List
|
Item |
Quantity |
|
reCamera 2002w |
x 1 |
|
reCamera Gimbal Head |
x 1 |
|
reCamera Gimbal Arm |
x 1 |
|
reCamera Gimbal Base Cover |
x 1 |
|
reCamera Gimbal Base |
x 1 |
|
Power Supply Board |
x 1 |
|
Antenna |
x 1 |
|
Motor MS3506 |
x 1 |
|
Motor MS3008 |
x 1 |
|
Screw A(KAB3.0x10.0mm) |
x 5 |
|
Screw B(KM2.0x6.0mm) |
x 7 |
|
Screw C(M2.0x10.0mm) |
x 5 |
|
Screw D(KM2.5×4.0mm) |
x 9 |
|
Screw E(KA2.0x6.0mm) |
x 5 |
|
DC Power Female Jack(5521) to XT30 Connector |
x 1 |
|
XT30(2+2)-F Connector with Wire |
x 1 |
|
Micro JST PH 2.0 6-Pin Female to Female Wire |
x 1 |
|
Screw Driver(M2.5xL55mm) |
x 1 |
|
Hex Key |
x 1 |
|
Motor Adapter Board |
x 1 |
|
User Manual |
x 1 |
