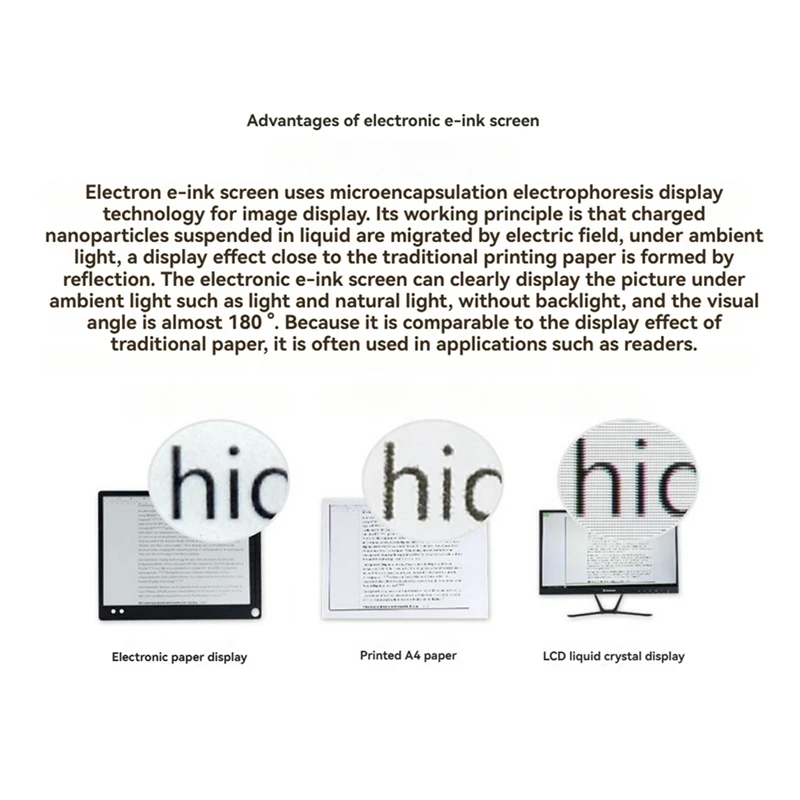

No backlight is required, and the last screen display content can be kept for a long time when the power is turned off.
Onboard level conversion chip, compatible with 3.3V and 5V microcontroller interfaces.
Based on the for Raspberry Pi 40PIN GPIO interface design, suitable for Raspberry Pi series motherboards, for Jetson Nano, RDK X3.

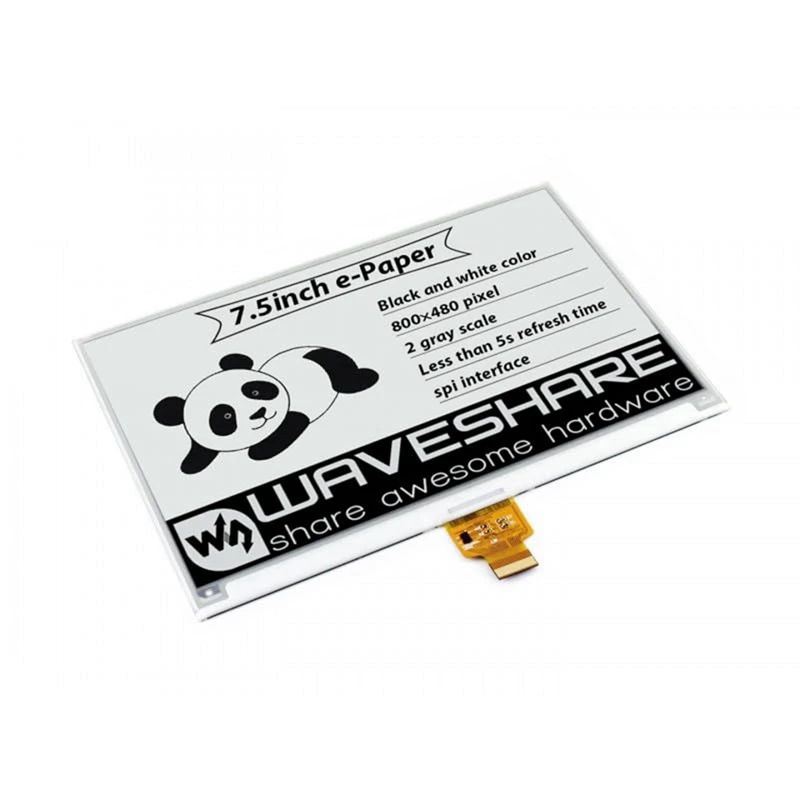

SPI control interface, can be connected to for Raspberry Pi/for Jetson Nano/RDK X3/for Arduino/STM32 and other main control boards.Size: 7.5 inches
Operating voltage: 3.3V/5V
Communication interface: SPI
Point spacing: 0.205mmx0.204mm
Resolution: 800×480
Display color: black, white
Grayscale: 4
Viewing angle: Greater than 170°
Refresh time: 4S
Partial refresh: 0.4S
Quick refresh: 1.5S
Colour:As Shown
Material:PCB
Package Contents:
1 * E-Ink Display
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
