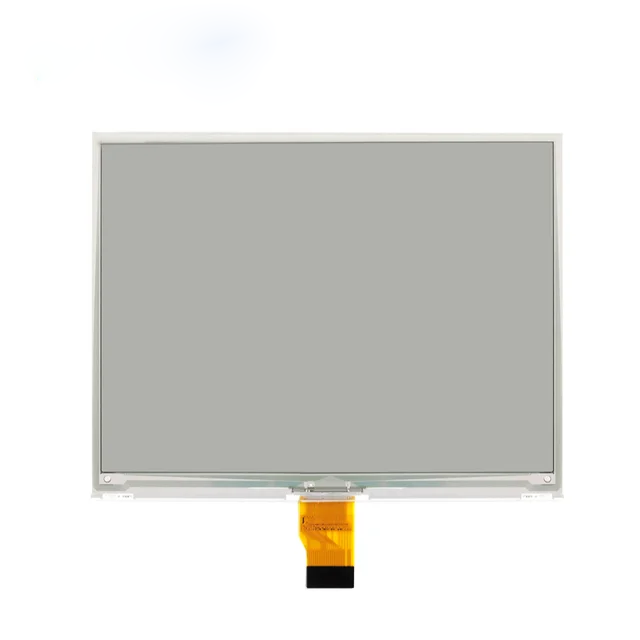

5.83 inch 4-Color E-Paper Display 648×480 SPI Interface E-Ink Screen 12s Fast Refresh

Price range: $38.90 through $55.90

Add to compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

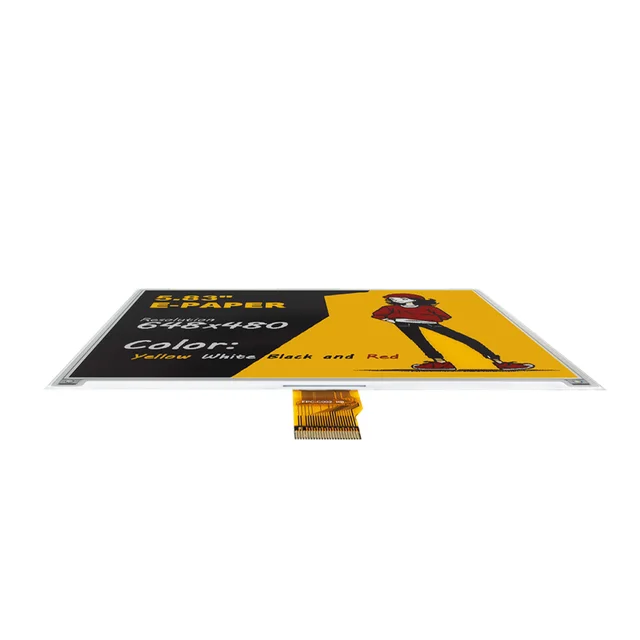

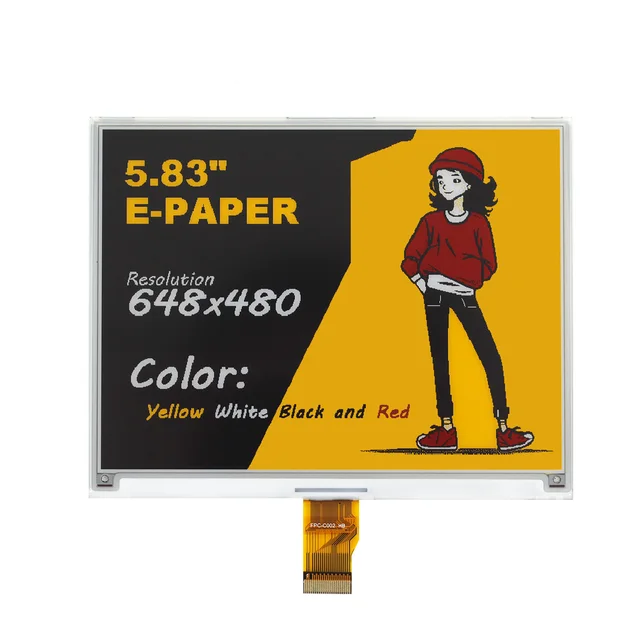

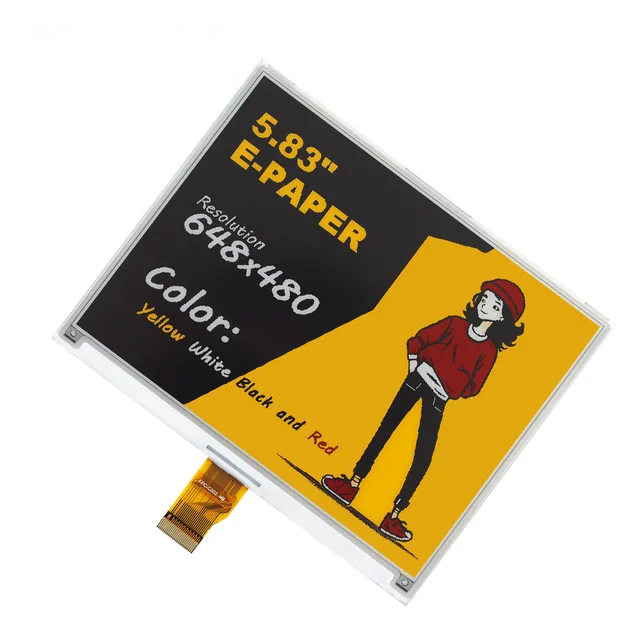

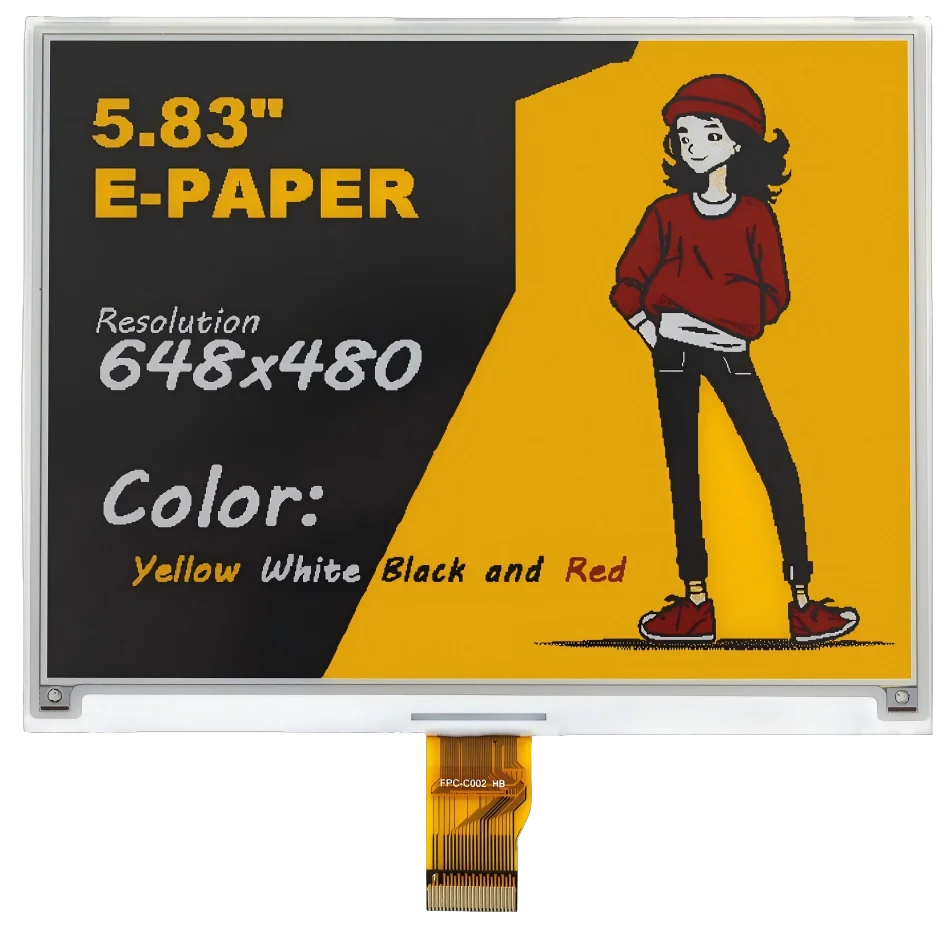

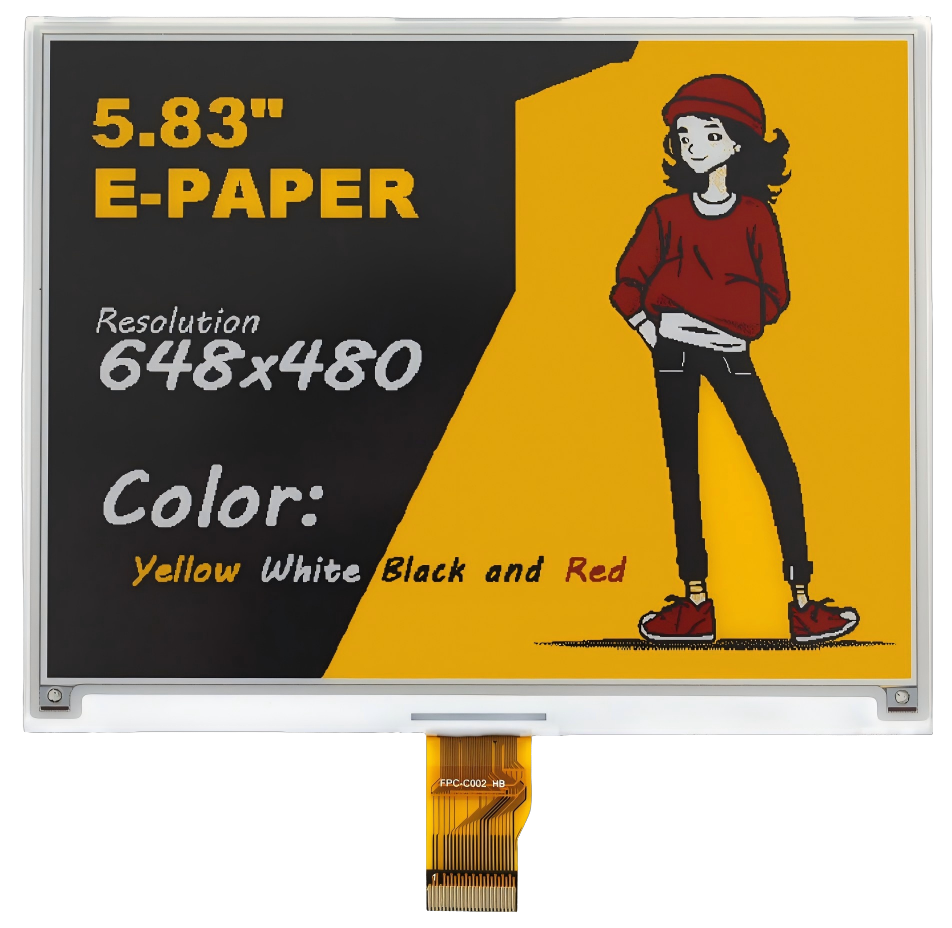

5.83″ 4-Color E-Ink Display

Revolutionize Your Display. See the Difference in Color & Speed. The GooDisplay’s fastest 12s refresh on a 4-color E Ink screen. Achieve vivid signage and dynamic IoT interfaces with near-zero power consumption.

Experience the paper-like future, today.

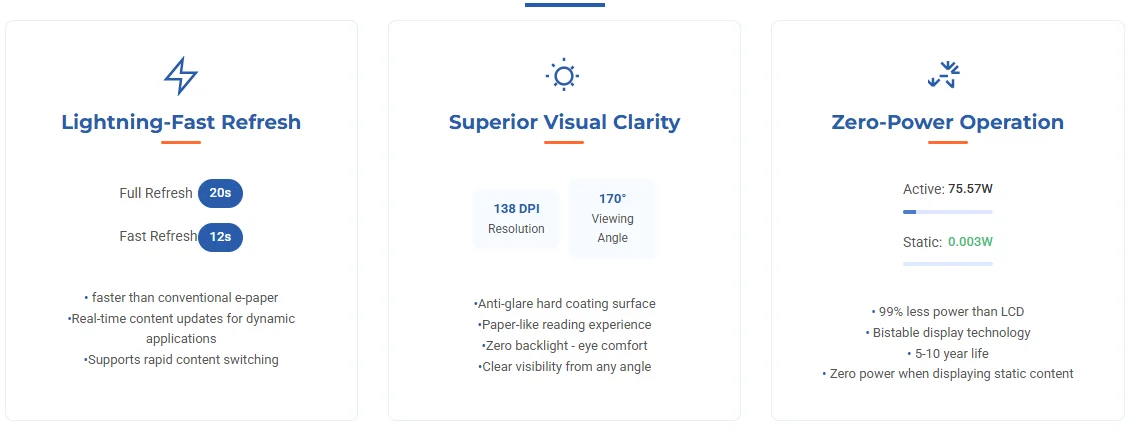

Core Advantages

Technical Details

Product Specifications
PART NUMBER GDEY0583F41
TYPE Dot Matrix
SIZE 5.83 inch
IC  JD79665CA
RESOLUTION 648×480
DPI 138

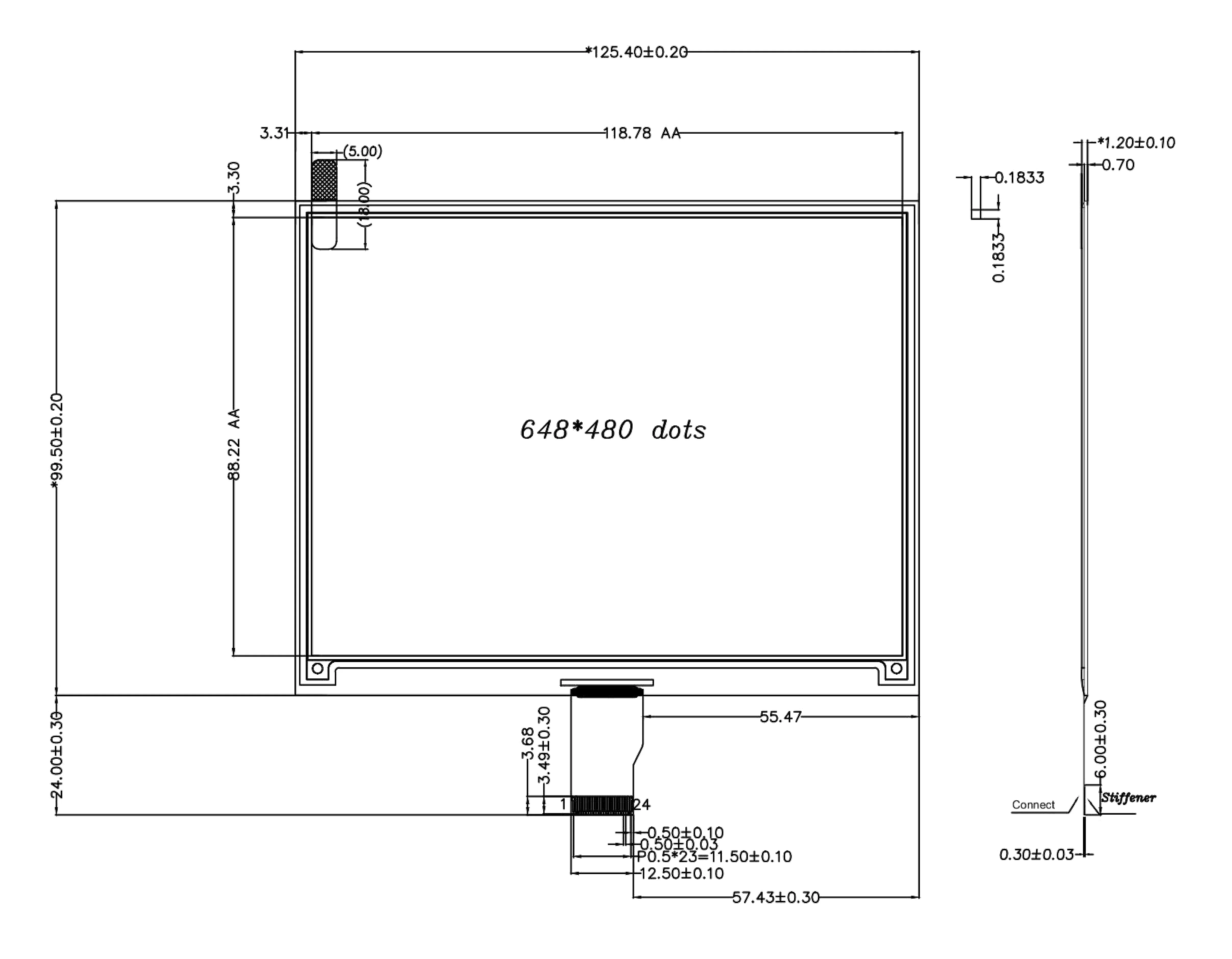

OUTLINE SIZE(mm) 125.40×99.50×1.20
ACTIVE SIZE(mm) 118.78×88.22
PIXEL PITCH(mm) 0.1833×0.1833
OPERATING TEMP 0℃~40℃
STORAGE TEMP -25℃~70℃

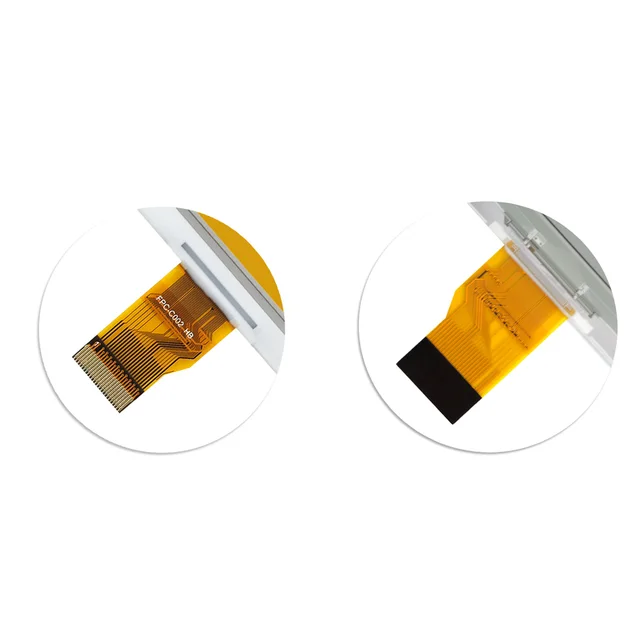

CONNECTOR 24 Pin  0.5mm
COLOR Red, Yellow, Black and White
INTERFACE SPI
FULL UPDATE(s) 20
FAST UPDATE(s) 12
TYPICAL POWER (mW) 75.57
DEEP SLEEP POWER (mW) 0.003

Typical Applications

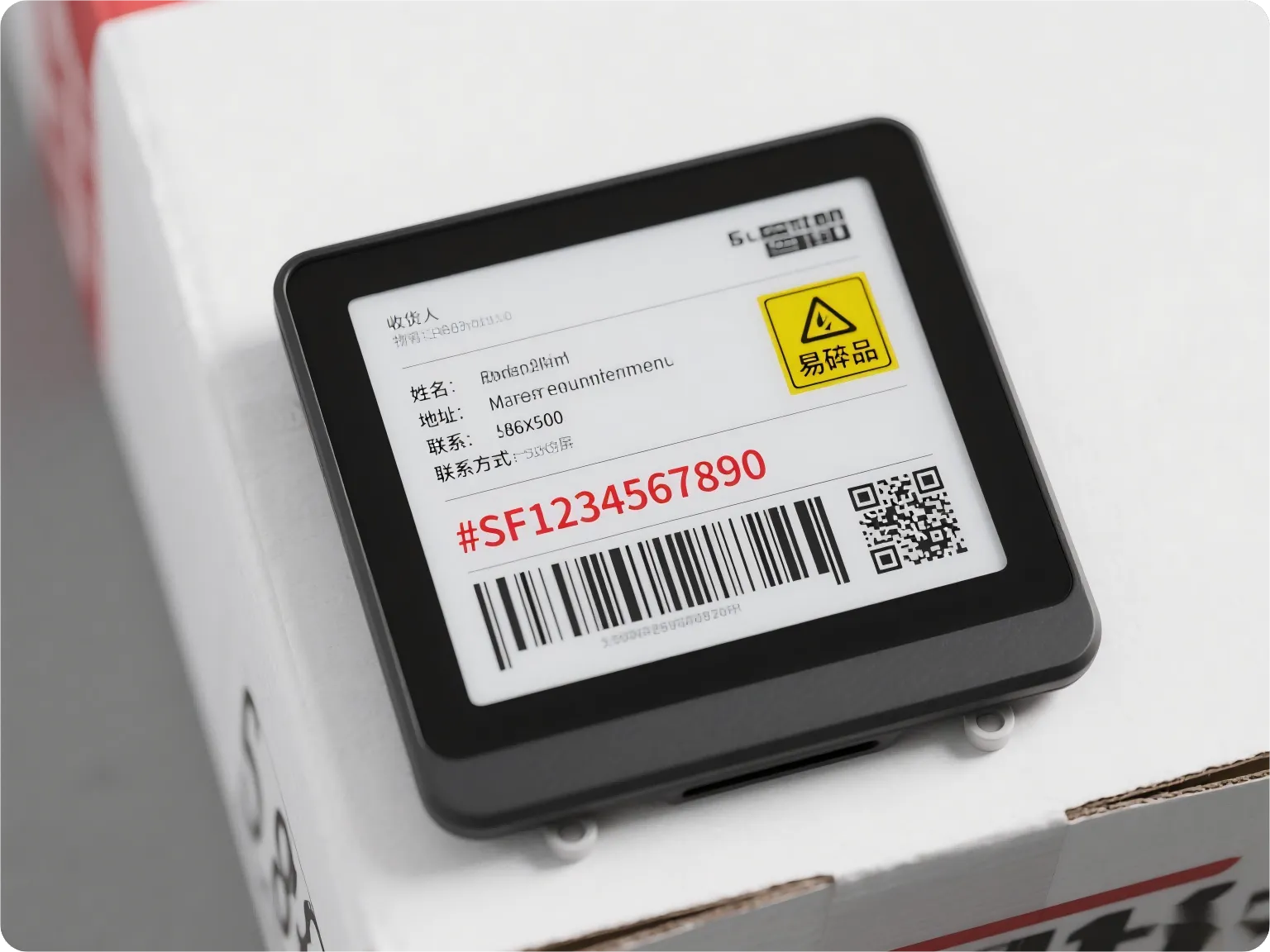

Electronic Shelf Labels (ESL)

Highlights promotions, out-of-stock items; strong visual impact.

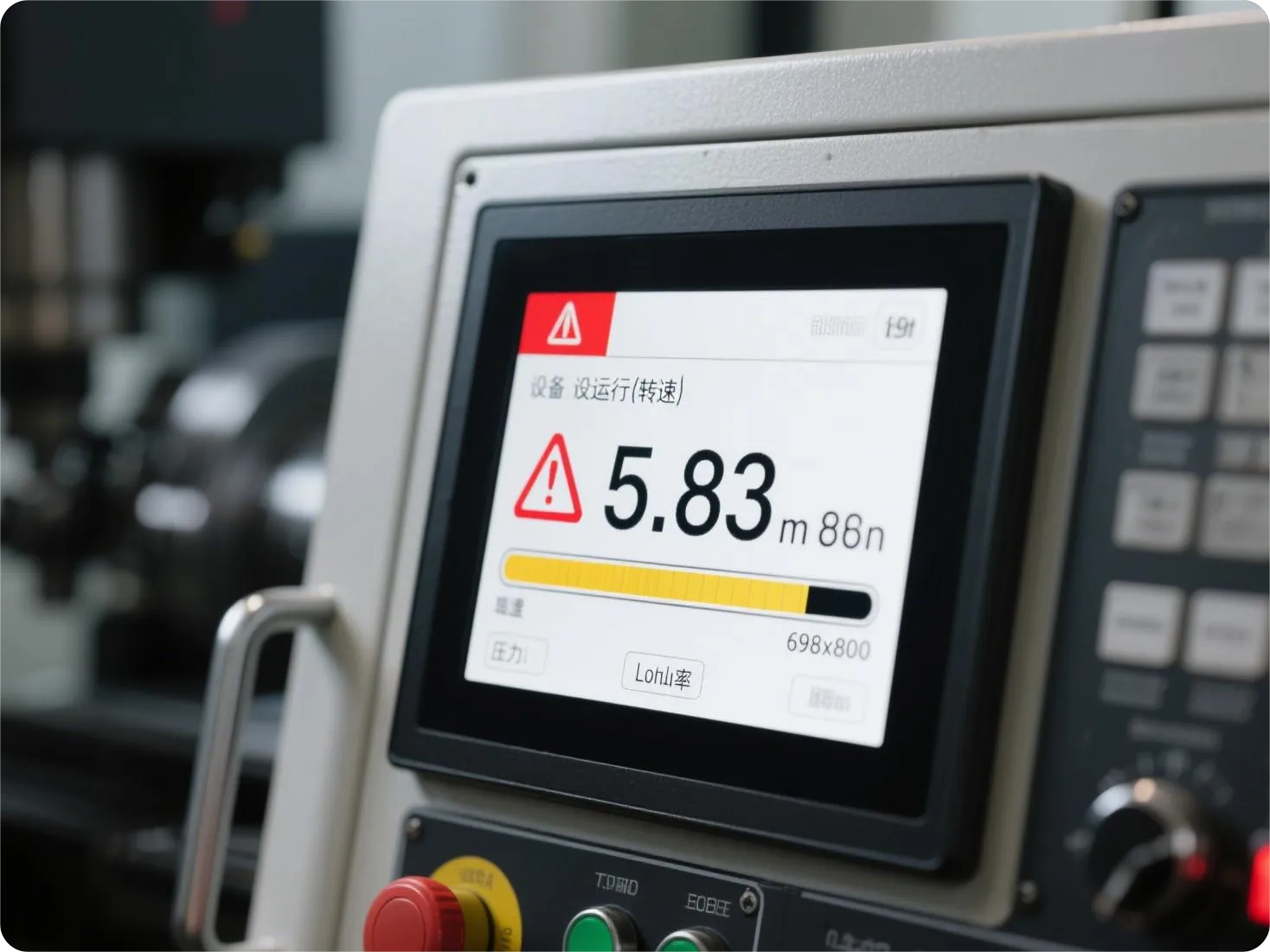

Equipment Status Dashboards

Intuitively indicates operational status (normal, warning, fault).

Kitchen Labels, Control Panels

Warns about expiration dates, visually shows device status.



SHOW MORE

Additional information

Weight N/A
