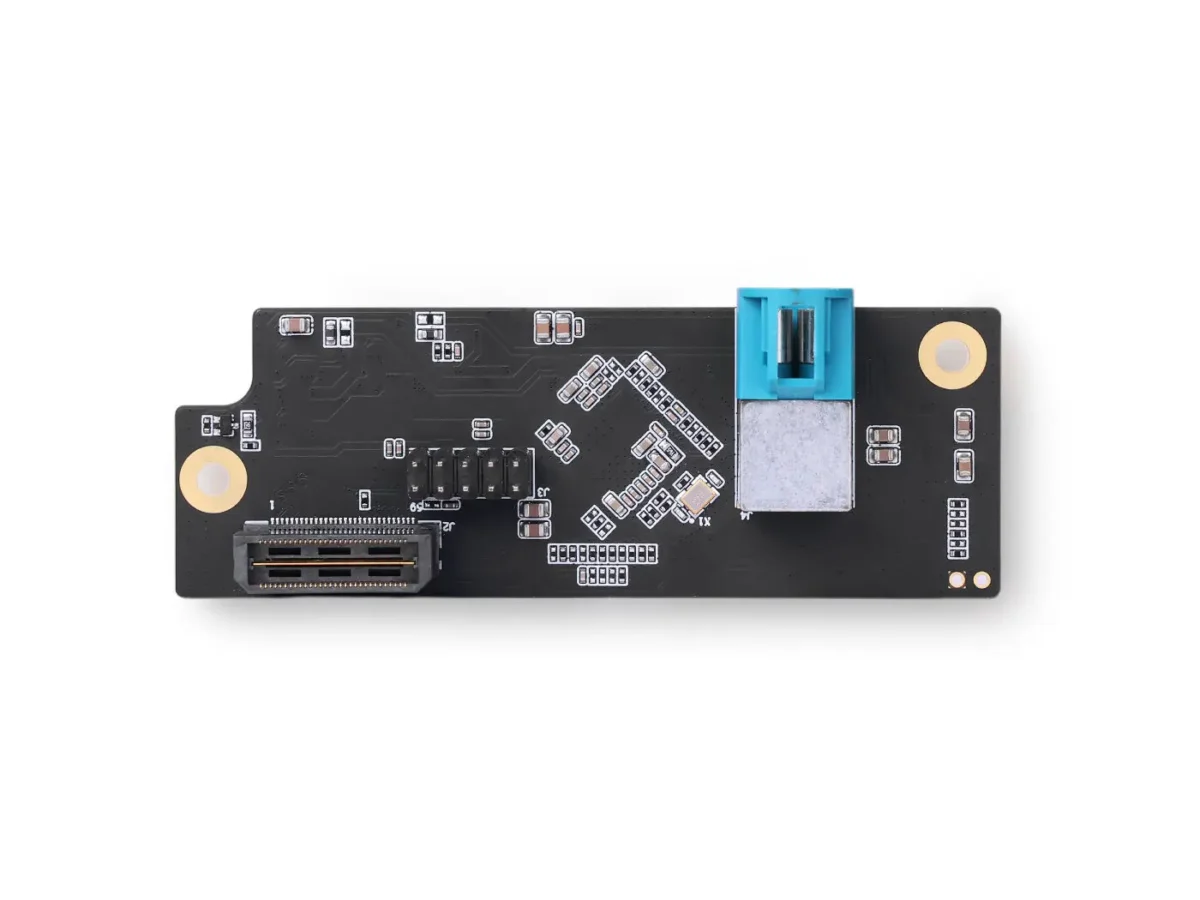

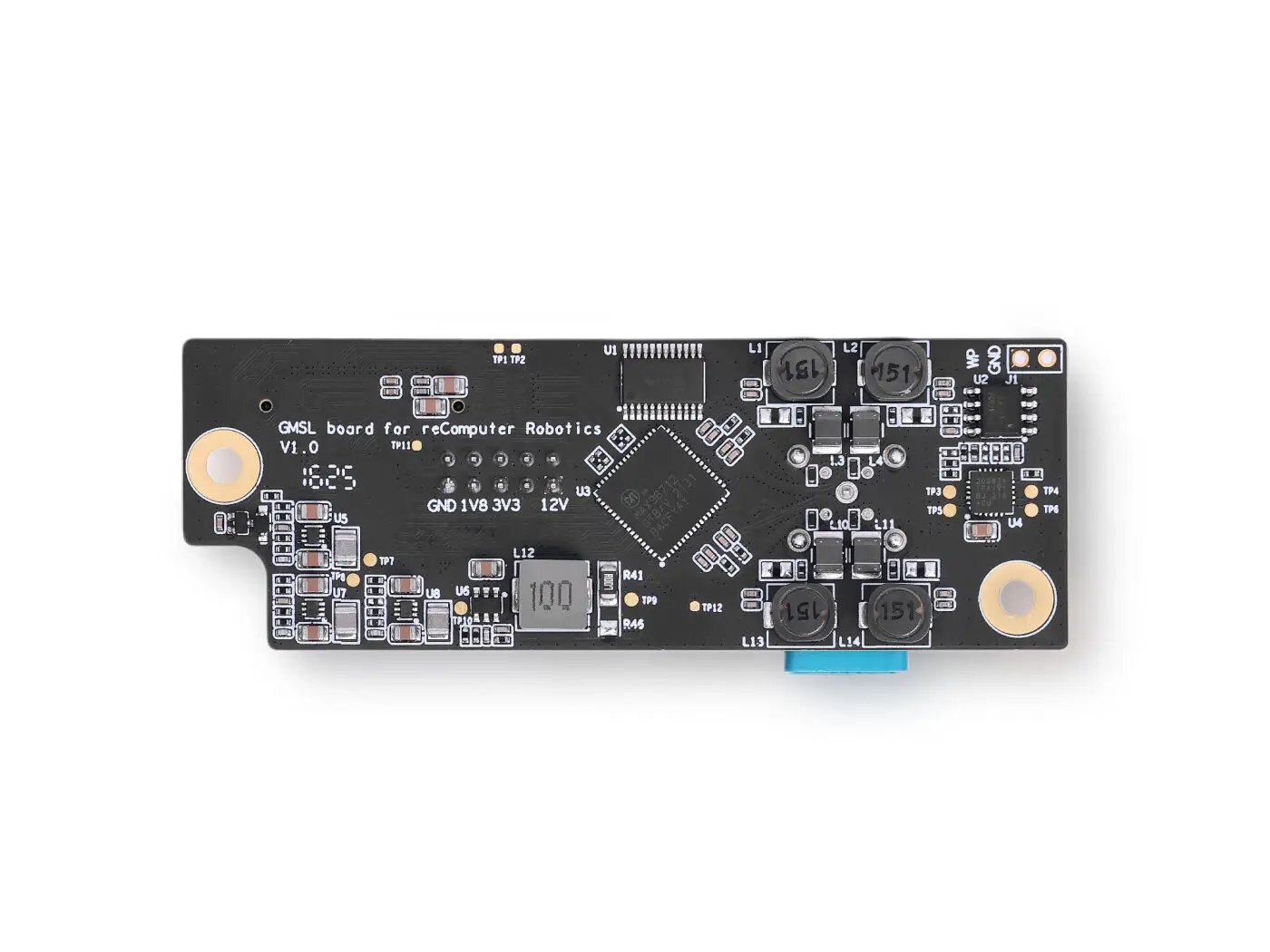

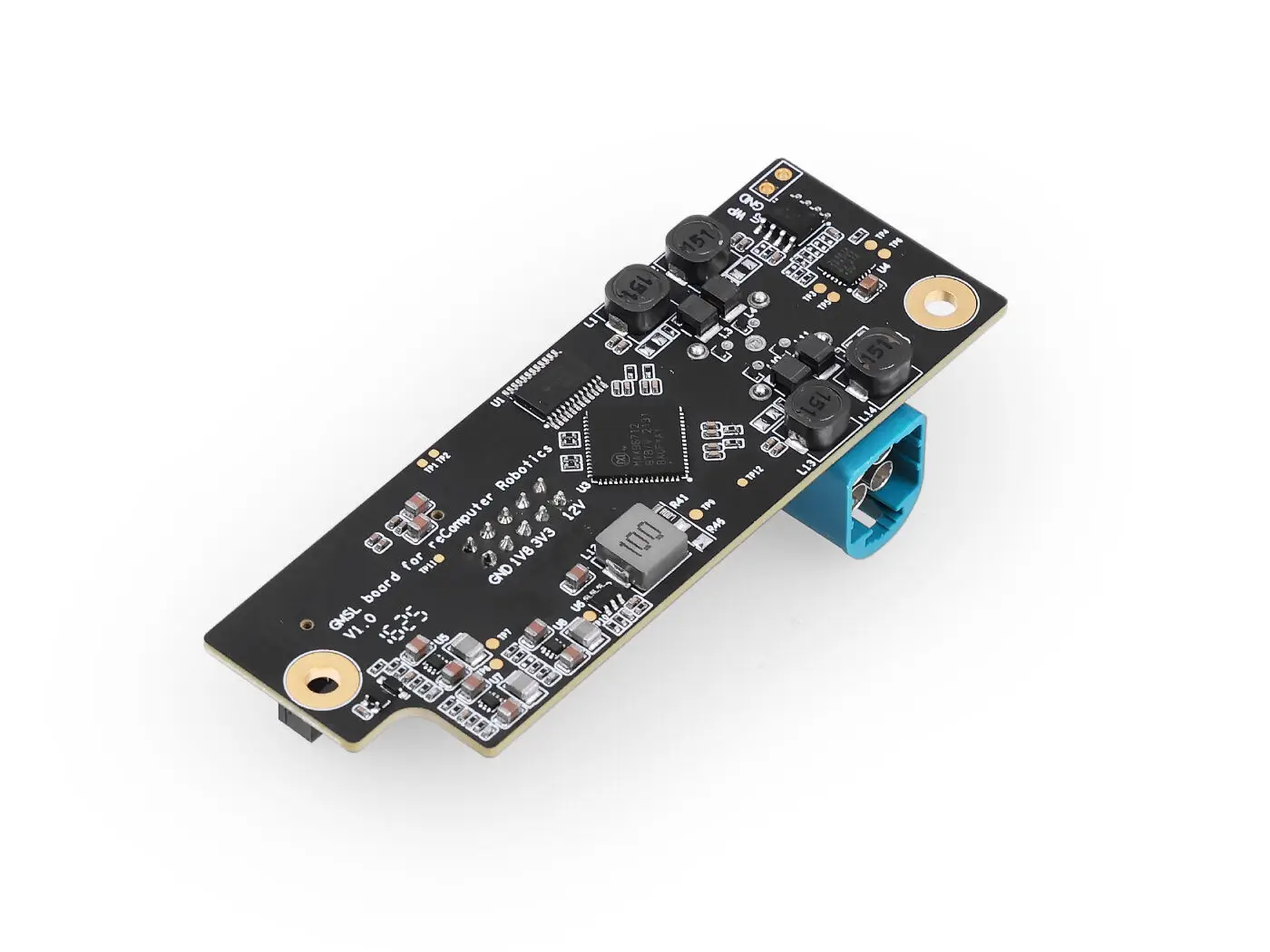

reComputer Robotics GMSL board is a GMSL extension board designed specifically for reComputer Robotics series of Jetson™ Orin™ NX and Orin™ Nano .
Both data and power are sent through coaxial cable. It uses MAX96712 as deserializer, and can be compatible with GMSL cameras that use MAX96717/MAX9295A as serializer.
This GMSL board currently has native support for multiple Sensing cameras and Orbbec Gemini 335LG, and can be connected up to 4 cameras simultaneously
- Industry-standard Deserializer Selection Uses MAX96712 as deserializer
- 6Gbps Data Rate Support Supports up to 6Gbps data rate per channel
- Ready-to Use GMSL Camera models Supports multiple GMSL cameras in Jetpack (See table below for models)
|
Product
|
reComputer Robotics GMSL Board
|
|
Deserializer
|
MAX96712
|
|
Operating Temperature
|
-20℃~60℃
|
|
Mechanical Dimension
|
86mm x 31mm x 18mm
|
Cameras Supported in Jetpack
|
Manufactuer
|
Model
|
Resolution
|
|
Sensing
|
SG3S-ISC031C-GMSL2F
|
1920H*1536V
|
|
SG2-AR0233C-5200-G2A
|
1920H*1080V
|
|
SG2-IMX390C-5200-G2A
|
1920H*1080V
|
|
SG8S-AR0820C-5300-G2A
|
3840H*2160V
|
|
Orbbec
|
Orbbec Gemini 335Lg
|
3D
|
|
reComputer GMSL Board
|
x1
|
|
M3 Stud
|
x2
|
|
M3 Screw
|
x2
|
