Note:
reComputer R1100 provides flexible IoT wireless communication(4G, LoRa®, Wi-Fi/BLE, Zigbee) and essential functional modules (GPS, UPS, TPM2.0, PoE, SSD, etc.).
🌱Customize, Configure, and Engineer your own reComputer R1100
🌱Check the assembly guide
🌱Upgrade it to an AIoT gateway with Raspberry Pi AI Kit for Raspberry Pi 5
|
Parameter |
Description |
|
|
Hardware Spec |
||
|
Product Series |
R1100 Series |
R1000 Series |
|
CPU |
Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz |
|
|
Operating System |
Raspbian, Debian, Yocto, Buildroot |
Raspbian, Debian, Yocto, Buildroot |
|
RAM |
1GB/2GB/4GB/8GB |
|
|
eMMC |
8GB/16GB/32GB |
|
|
System Spec |
||
|
Power Input |
DC 9V~36V, 2-pin Terminal Block |
AC12~24V/ DC 9~36V, 2-pin Terminal Block |
|
PoE(as powered device) |
IEEE 802.3af Standard 12.95W PoE* |
|
|
Power Consumption |
Idle:2.88W; Full Load:5.52W |
|
|
Power Switch |
No |
|
|
Reboot Switch |
Yes |
|
|

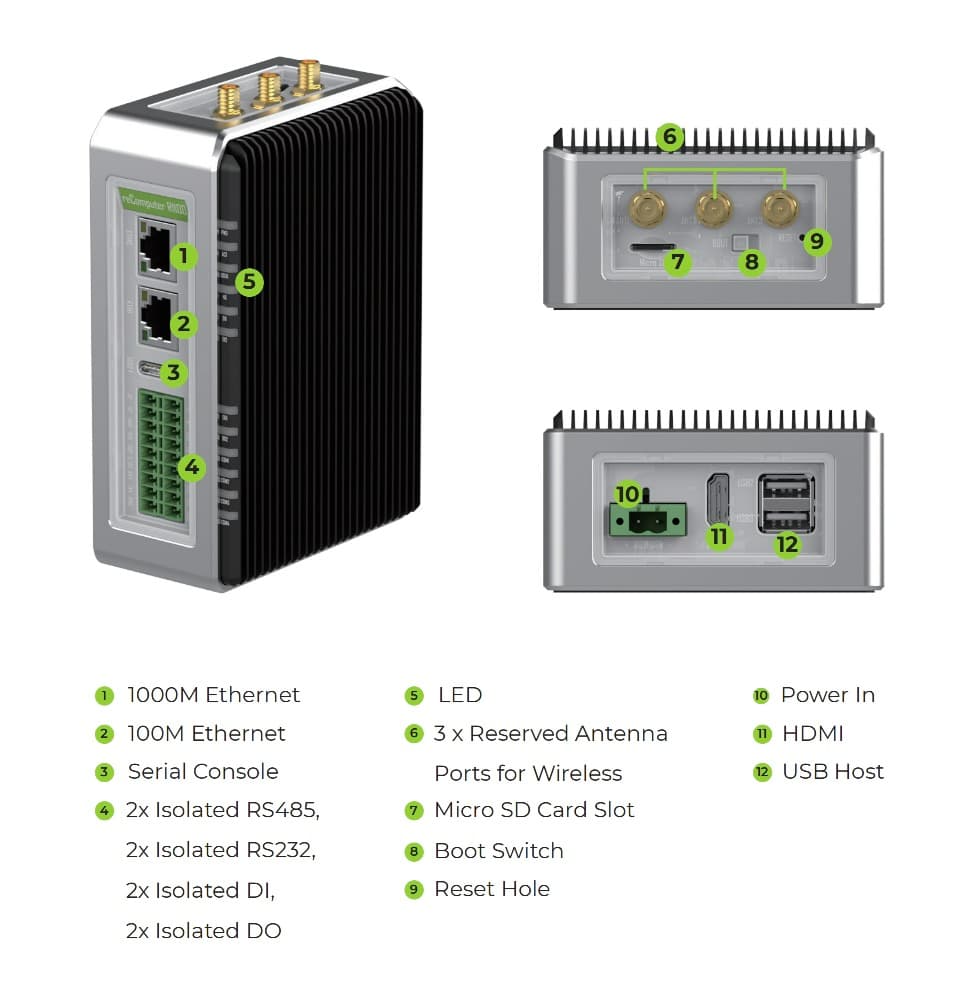

Interface |
||
|
Ethernet |
1 x 10/100/1000 Mbps (Supports PoE*) |
|
|
1 x 10/100 Mbps IEEE802.3/802.3u |
||
|
USB |
2 x USB-A 2.0 Host |
|
|
1 x USB-C 2.0 (For flashing OS) |
||
|
RS485 |
2x RS485(Isolated) |
3x RS485(Isolated) |
|
RS232 |
2x RS232(Isolated) |
/ |
|
DI |
2 x Isolated DI Ports |
/ |
|
Input Voltage: 5~24V DC |
||
|
DO |
2 x Isolated DO Ports |
/ |
|
Output Voltage: <60V DC |
||
|
HDMI |
1 x HDMI 2.0 |
|
|
SIM Card |
1x Nano SIM Card Slot（Internal） |
1x Standard SIM card slot |
|
SD Card |
1x Micro SD Card Slot |
/ |
|
SSD Card |
1x M.2 NVMe SSD Slot 2280-M Key |
|
|
LED |
12 x LED Indicators |
6 x LED indicators |
|
Buzzer |
1 |
|
|
Reset Button |
1 |
|
|
Wireless Communication |
||
|
Wi-Fi 2.4/5.0 GHz |
On-chip Wi-Fi |
|
|
BLE 5.0 |
On-chip BLE |
|
|
LoRa®* |
USB LoRa®*/SPI LoRa®* |
|
|
4G Cellular* |
4G LTE* |
|
|
Zigbee* |
Zigbee* Module |
|
|
Standards |
||
|
EMC |
ESD: EN61000-4-2, Level 3 |
|
|
EFT: EN61000-4-4, Level 2 |
||
|
Surge: EN61000-4-5, Level 2 |
||
|
Certification |
CE |
|
|
FCC |
||
|
TELEC |
||
|
RoHS |
||
|
Ambient Conditions |
||
|
Ingress Protection |
IP40 |
|
|
Operating Temperature |
-30~70 °C |
|
|
Operating Humidity |
10~95% RH |
|
|
Storage Temperature |
-40~80 °C |
|
|
Others |
||
|
Supercapacitor UPS* |
SuperCAP UPS LTC3350 Module* |
|
|
Hardware Watch Dog |
1~255s |
|
|
RTC |
High Accuracy RTC |
|
|
Security |
Encryption Chip TPM 2.0*/ATECC608A |
|
|
Heat Dissipation |
Fanless |
|
|
Warranty |
2 years |
|
|
Production Lifetime |
Until December 2030 |
|
|
Statement |
Options marked with * require additional purchase according to the accessories list. |
|
ApplicationThe application of the reComputer R1100 spans five key areas
